TPIC2010RDFDRG4

TPIC2010RDFDRG4 Overview

Product belongs to the TPIC2010 series. This product is categorized as Fan / Motor Controllers / Drivers Type: Motor Driver IC Tape & Reel (TR) is the packaging method for this product Weight of 0.008356 oz SMD/SMT Mounting-Style Wide - 20 C to + 75 C operating temperature range for diverse applications HTSSOP-56 Power MOSFET is the technology used. Operational temperature range: -20°C ~ 75°C (TA) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile Media Player applications for maximum usability Interface: SPI Voltage Supply Range: 3.3V, 5V Supplier device package: 56-HTSSOP Number-of-Outputs: 9 Output The Half Bridge (19). Voltage-Load range is 4.5 V ~ 5.5 V. Brushless DC (BLDC), Brushed DC motor type is used for high-performance and efficient operation. Power-off control: 1.344 W This product operates at a 5 V supply voltage for reliable performance. 1 mA is 92 nA. The operating frequency is 33.8688 MHz. Output current: 700 mA

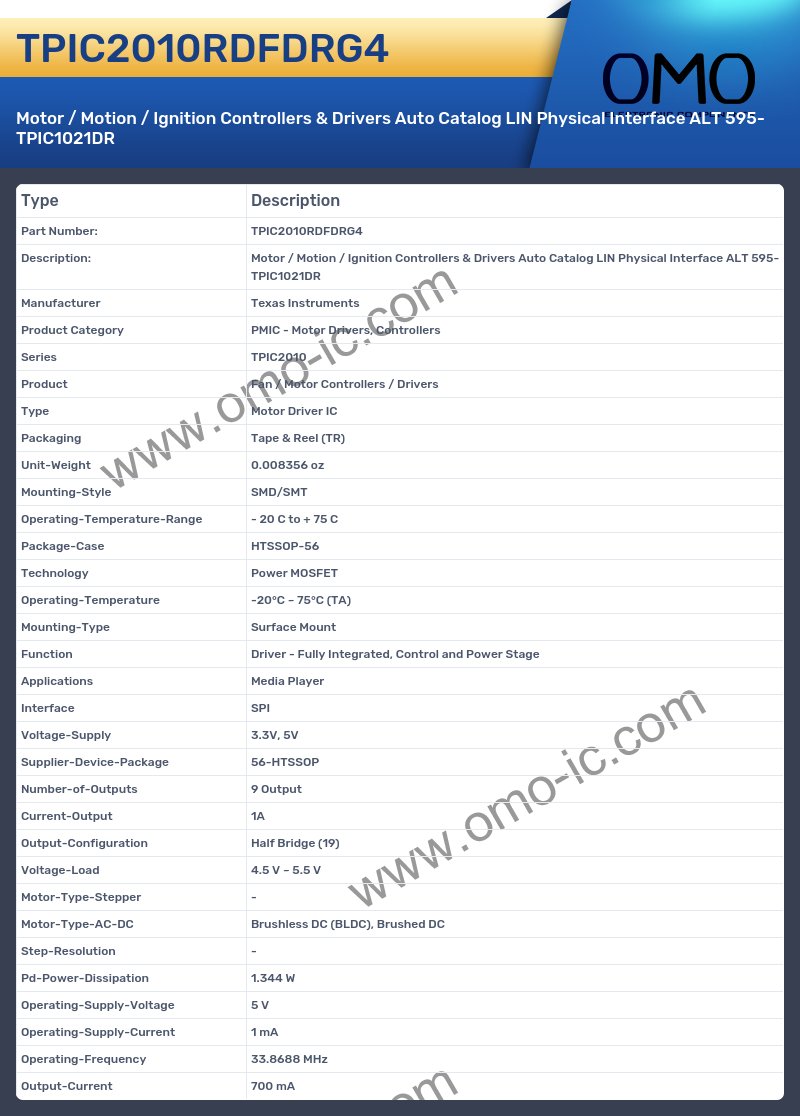

TPIC2010RDFDRG4 Image

TPIC2010RDFDRG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Motor Drivers, Controllers
• Series TPIC2010
• Product Fan / Motor Controllers / Drivers
• Type Motor Driver IC
• Packaging Tape & Reel (TR)
• Unit-Weight 0.008356 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 20 C to + 75 C
• Package-Case HTSSOP-56
• Technology Power MOSFET
• Operating-Temperature -20°C ~ 75°C (TA)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications Media Player
• Interface SPI
• Voltage-Supply 3.3V, 5V
• Supplier-Device-Package 56-HTSSOP
• Number-of-Outputs 9 Output
• Current-Output 1A
• Output-Configuration Half Bridge (19)
• Voltage-Load 4.5 V ~ 5.5 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushless DC (BLDC), Brushed DC
• Step-Resolution -
• Pd-Power-Dissipation 1.344 W
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 1 mA
• Operating-Frequency 33.8688 MHz
• Output-Current 700 mA
