TN22-1500T

TN22-1500T Overview

Product belongs to the TN22 series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 110°C Through Hole mounting type Supplier device package: TO-220AB 175mA of Current-Hold-Ih-Max The Voltage-Off-State is 400V. Voltage-Gate-Trigger-Vgt-Max 3V 1.5mA of Current-Gate-Trigger-Igt-Max Maximum 3.1V On-State Voltage Its 1.8A Current-On-State-It-AV-Max 2A is the maximum Current-On-State-It-RMS. 100μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 20A, 22A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C The 400 V Rated Repetitive Off-State Voltage VDRM; 175 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 3 V on this product. Gate-Trigger-Current-Igt: 1.5 mA; 22 A Non-Repetitive On-State Current The 0.1 mA Off-State Leakage Current in VDRM and IDRM. Vf-Forward-Voltage: 3.1 V

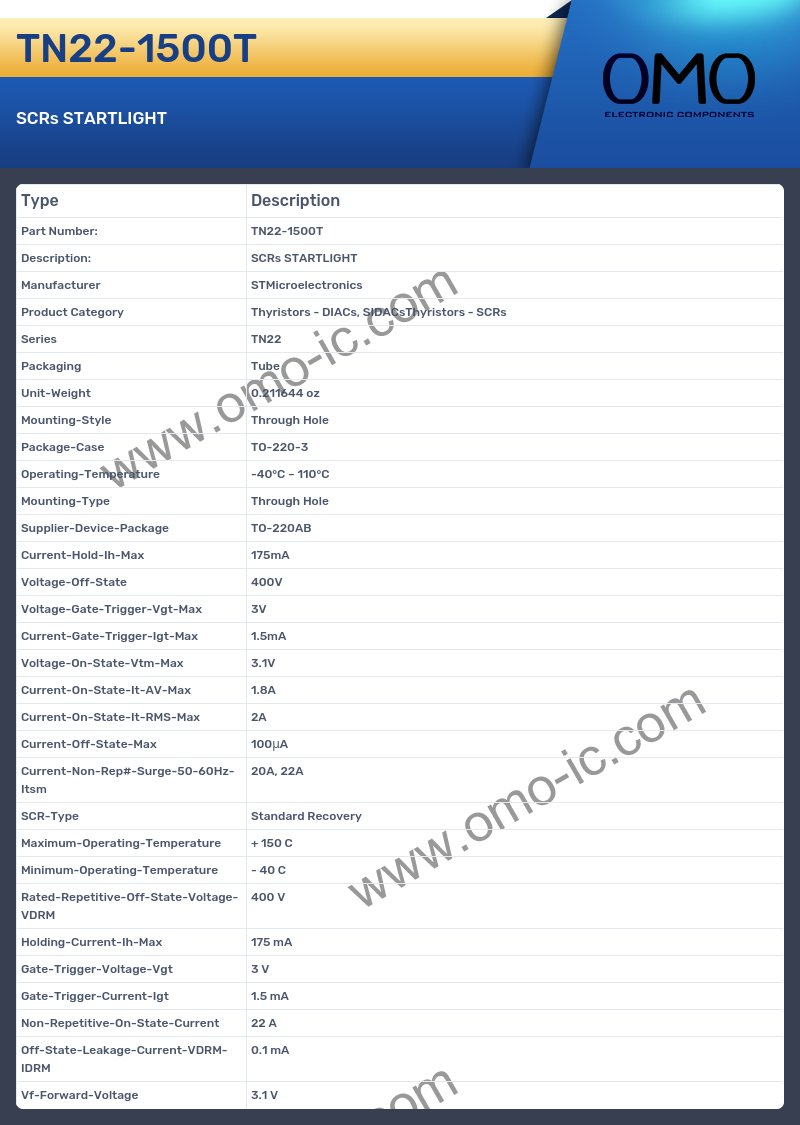

TN22-1500T Image

TN22-1500T Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series TN22
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 110°C
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Current-Hold-Ih-Max 175mA
• Voltage-Off-State 400V
• Voltage-Gate-Trigger-Vgt-Max 3V
• Current-Gate-Trigger-Igt-Max 1.5mA
• Voltage-On-State-Vtm-Max 3.1V
• Current-On-State-It-AV-Max 1.8A
• Current-On-State-It-RMS-Max 2A
• Current-Off-State-Max 100μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 20A, 22A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 400 V
• Holding-Current-Ih-Max 175 mA
• Gate-Trigger-Voltage-Vgt 3 V
• Gate-Trigger-Current-Igt 1.5 mA
• Non-Repetitive-On-State-Current 22 A
• Off-State-Leakage-Current-VDRM-IDRM 0.1 mA
• Vf-Forward-Voltage 3.1 V
