TN1205H-6G-TR

TN1205H-6G-TR Overview

Product belongs to the TN1205H series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz Through Hole Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Operational temperature range: -40°C ~ 150°C Surface Mount mounting type Supplier device package: D2PAK 20mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 1.3V 5mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 7.6A Current-On-State-It-AV-Max 12A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 120A, 126A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 150 C The 600 V Rated Repetitive Off-State Voltage VDRM; 20 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 5 mA; 7.6 A RMS Current On-State

TN1205H-6G-TR Image

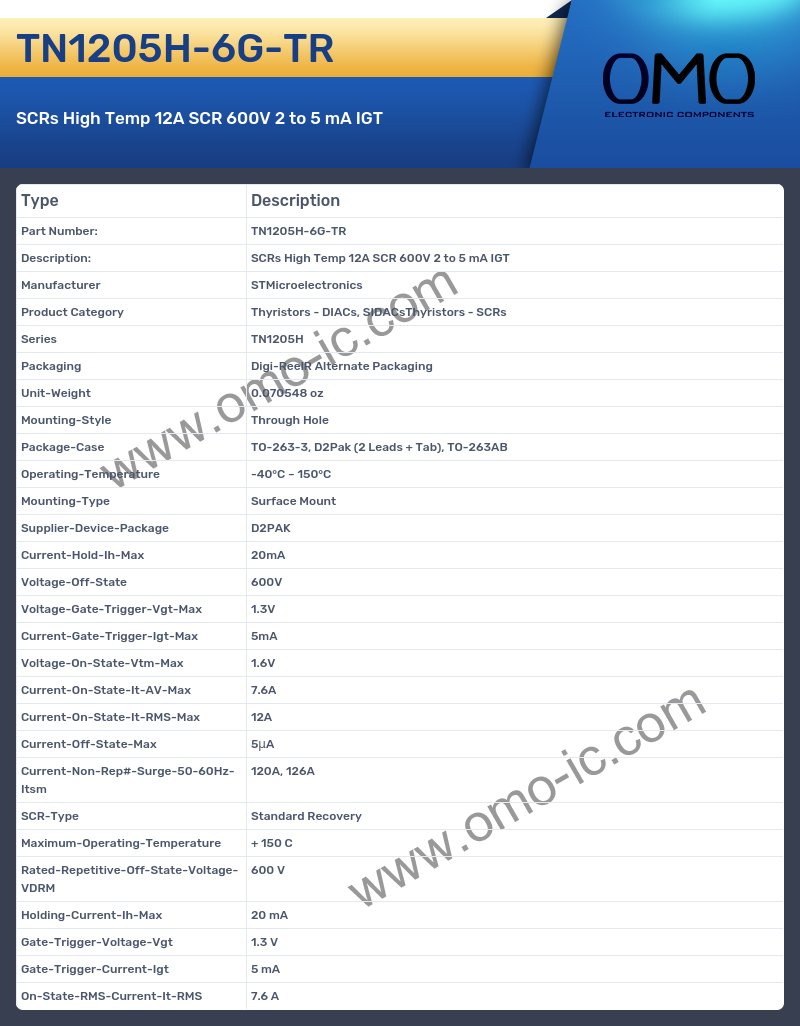

TN1205H-6G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series TN1205H
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style Through Hole
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Operating-Temperature -40°C ~ 150°C
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Current-Hold-Ih-Max 20mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 5mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 7.6A
• Current-On-State-It-RMS-Max 12A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 120A, 126A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 150 C
• Rated-Repetitive-Off-State-Voltage-VDRM 600 V
• Holding-Current-Ih-Max 20 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 5 mA
• On-State-RMS-Current-It-RMS 7.6 A
