TN1205H-6G

TN1205H-6G Overview

Product belongs to the TN1205H series. Tube is the packaging method for this product TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Operational temperature range: -40°C ~ 150°C Surface Mount mounting type Supplier device package: D2PAK 20mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 1.3V 5mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 7.6A Current-On-State-It-AV-Max 12A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 120A, 126A for 50-60Hz Itsm. SCR-Type: Standard Recovery;

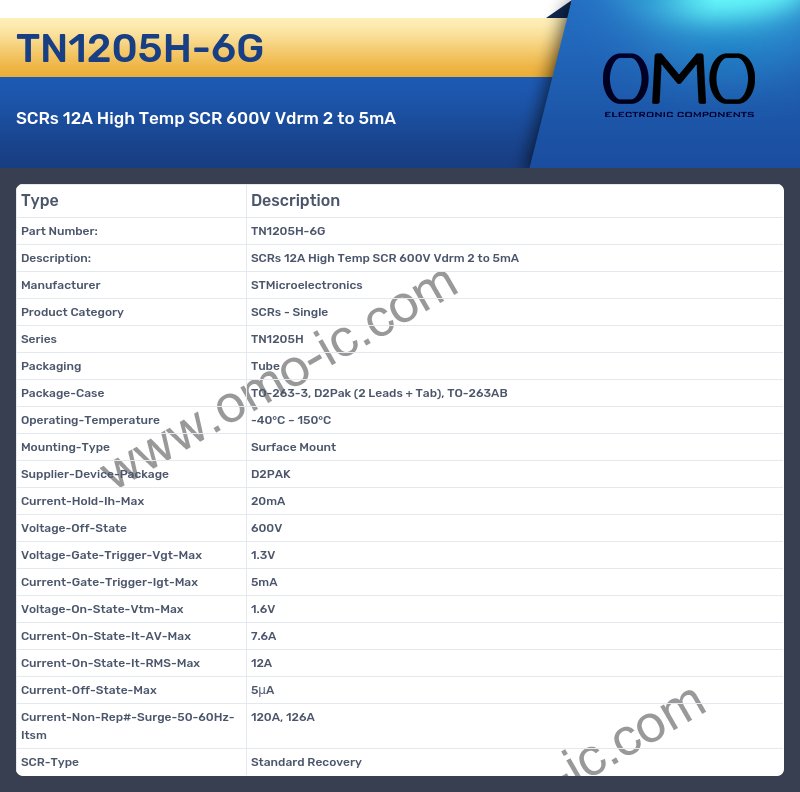

TN1205H-6G Image

TN1205H-6G Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series TN1205H
• Packaging Tube
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Operating-Temperature -40°C ~ 150°C
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Current-Hold-Ih-Max 20mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 5mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 7.6A
• Current-On-State-It-RMS-Max 12A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 120A, 126A
• SCR-Type Standard Recovery
