TMMBAT48FILM

TMMBAT48FILM Overview

Product belongs to the TMMBAT 48 series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DO-213AA (Glass) Si is the technology used. Surface Mount mounting type Supplier device package: Mini MELF Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 25μA @ 40V Current-Reverse-Leakage-Vr 1. Vf Max 750mV @ 200mA is the Voltage-Forward; Maximum DC reverse voltage 40V The 350mA (DC) Current-Average-Rectified-Io; The capacitance value of this product is 20pF @ 0V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -65°C ~ 125°C Maximum operating temperature of + 125 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.9 V at 0.5 A Ir-Reverse-Current is 25 uA. If-Forward-Current is 0.35 A. VRRM (40 V) Reverse Voltage 7.5 A IFSM Forward Surge Current The 10 ns TRR-Reverse-Recovery-time

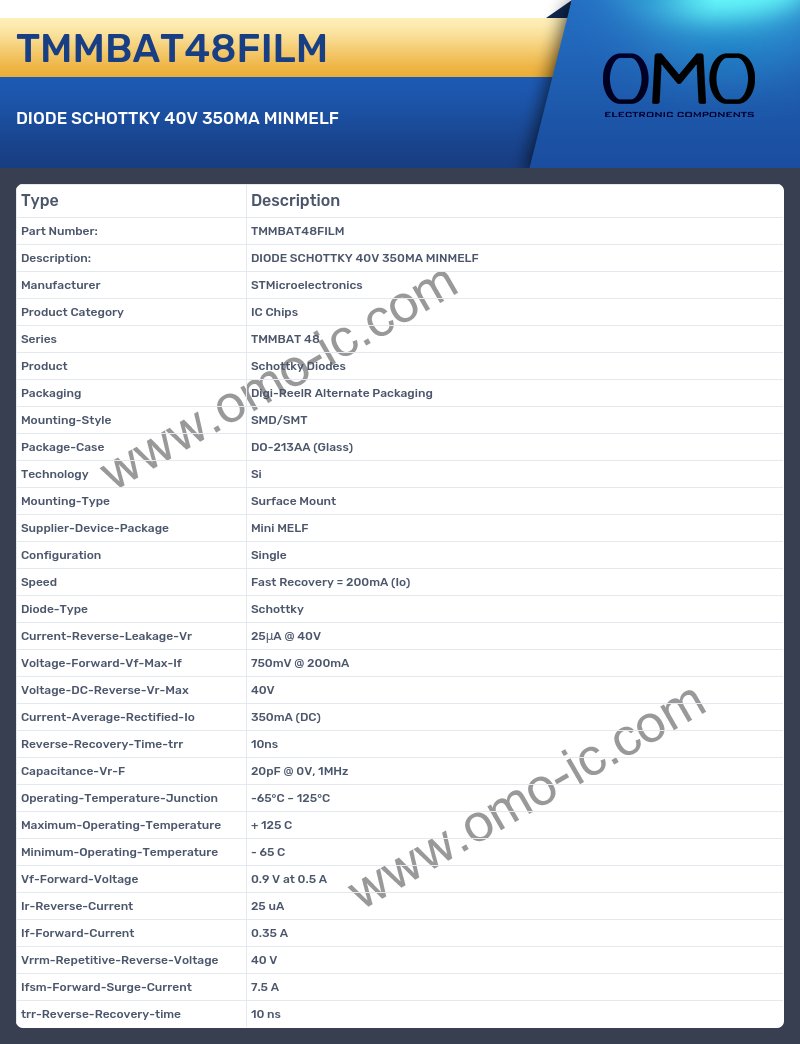

TMMBAT48FILM Image

TMMBAT48FILM Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series TMMBAT 48
• Product Schottky Diodes
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DO-213AA (Glass)
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package Mini MELF
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 25μA @ 40V
• Voltage-Forward-Vf-Max-If 750mV @ 200mA
• Voltage-DC-Reverse-Vr-Max 40V
• Current-Average-Rectified-Io 350mA (DC)
• Reverse-Recovery-Time-trr 10ns
• Capacitance-Vr-F 20pF @ 0V, 1MHz
• Operating-Temperature-Junction -65°C ~ 125°C
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.9 V at 0.5 A
• Ir-Reverse-Current 25 uA
• If-Forward-Current 0.35 A
• Vrrm-Repetitive-Reverse-Voltage 40 V
• Ifsm-Forward-Surge-Current 7.5 A
• trr-Reverse-Recovery-time 10 ns
