TLV70015DCKR

TLV70015DCKR Overview

Product belongs to the TLV70015 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000705 oz SMD/SMT Mounting-Style SC-70-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SC-70-5 Tolerance of 2 % 2 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.32 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V Maximum Input Voltage: 5.5 V Output current: 200 mA The product's + 2 V is 5.1 V. Load regulation is 1 mV. The voltage regulation accuracy of this product is 2 %. The 0.175 V at 200 mA. The maximum 175 mV at 200 mA is 360 mV. This product's 1 mV is 0.01 %/V.

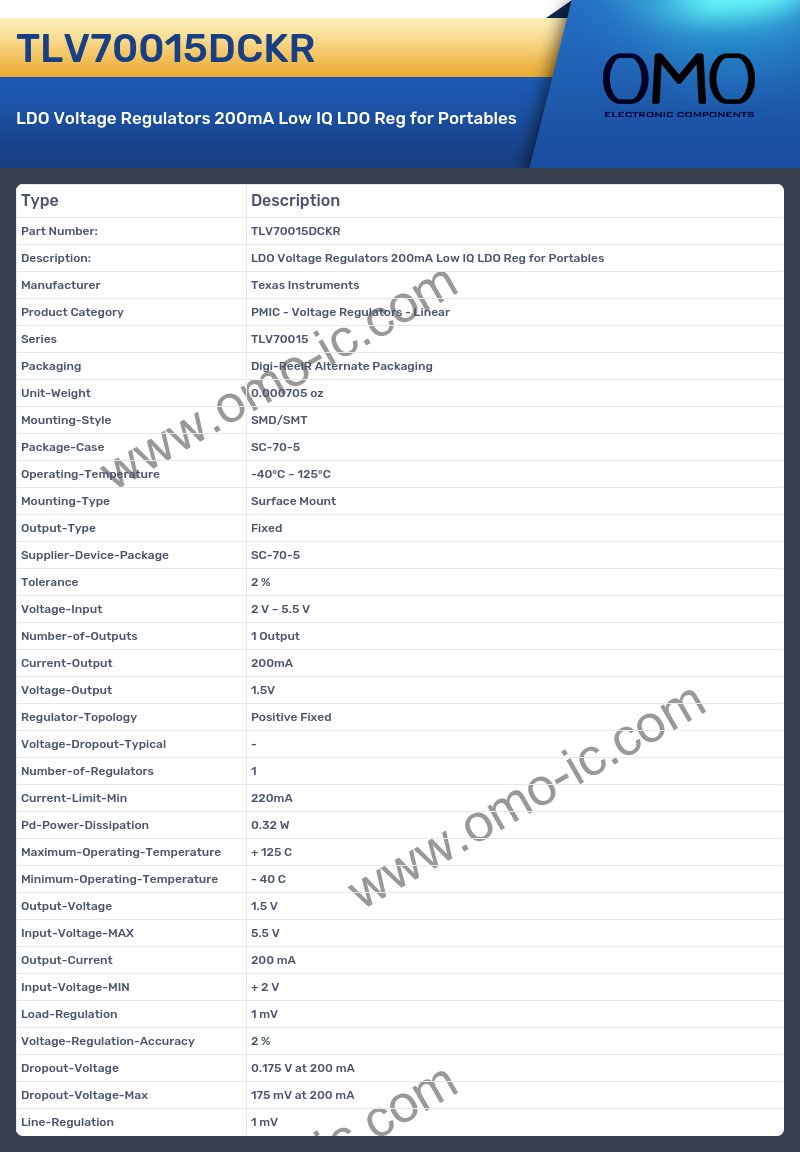

TLV70015DCKR Image

TLV70015DCKR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TLV70015
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000705 oz
• Mounting-Style SMD/SMT
• Package-Case SC-70-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SC-70-5
• Tolerance 2 %
• Voltage-Input 2 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output 1.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 220mA
• Pd-Power-Dissipation 0.32 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 200 mA
• Input-Voltage-MIN + 2 V
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage 0.175 V at 200 mA
• Dropout-Voltage-Max 175 mV at 200 mA
• Line-Regulation 1 mV
