TLV5580CPW

TLV5580CPW Overview

Product belongs to the TLV5580 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 28-TSSOP This product's 80M. Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 270 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Number-of-Converters: 1 Converter 80 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 2.4 LSB Differential nonlinearity: - 1 /1.3 LSB

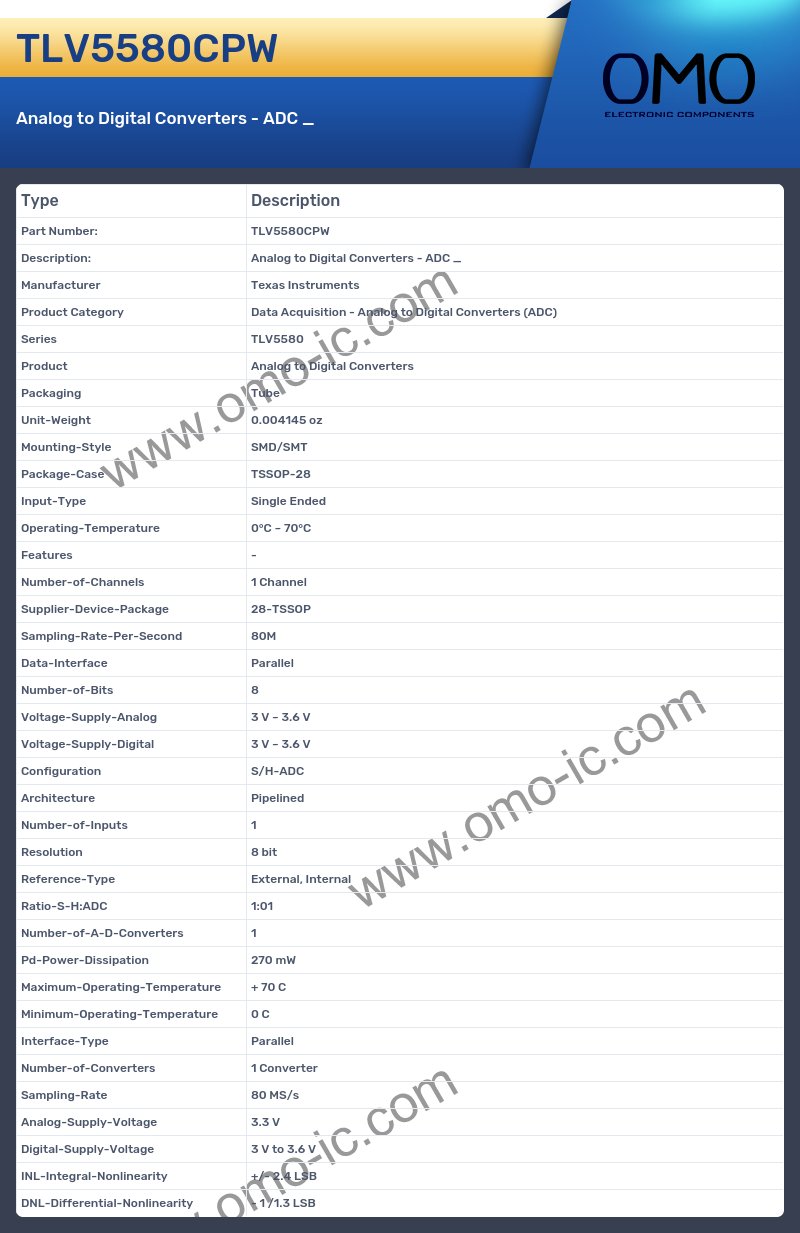

TLV5580CPW Image

TLV5580CPW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLV5580
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-TSSOP
• Sampling-Rate-Per-Second 80M
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 8 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 270 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• Number-of-Converters 1 Converter
• Sampling-Rate 80 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 2.4 LSB
• DNL-Differential-Nonlinearity - 1 /1.3 LSB
