TLV3502AIDCNR

TLV3502AIDCNR Overview

Product belongs to the TLV3502 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-23-8 The Rail to Rail for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, Push-Pull, Rail-to-Rail, TTL Number of channels: 2 Channel Supplier device package: SOT-23-8 Voltage supply range: 2.7 V ~ 5.5 V, ±1.35 V ~ 2.75 V 2 element 5mA maximum quiescent current. Maximum propagation delay: 10ns Hysteresis value of 6mV 4.5 ns response time Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 5 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.2 V General Purpose comparator type Input bias current of +/- 10 pA The 6.5 mV. The 100 dB. The - 0.2 V to 5.7 V. The CMRR-Common-Mode-Rejection-Ratio is 70 dB.

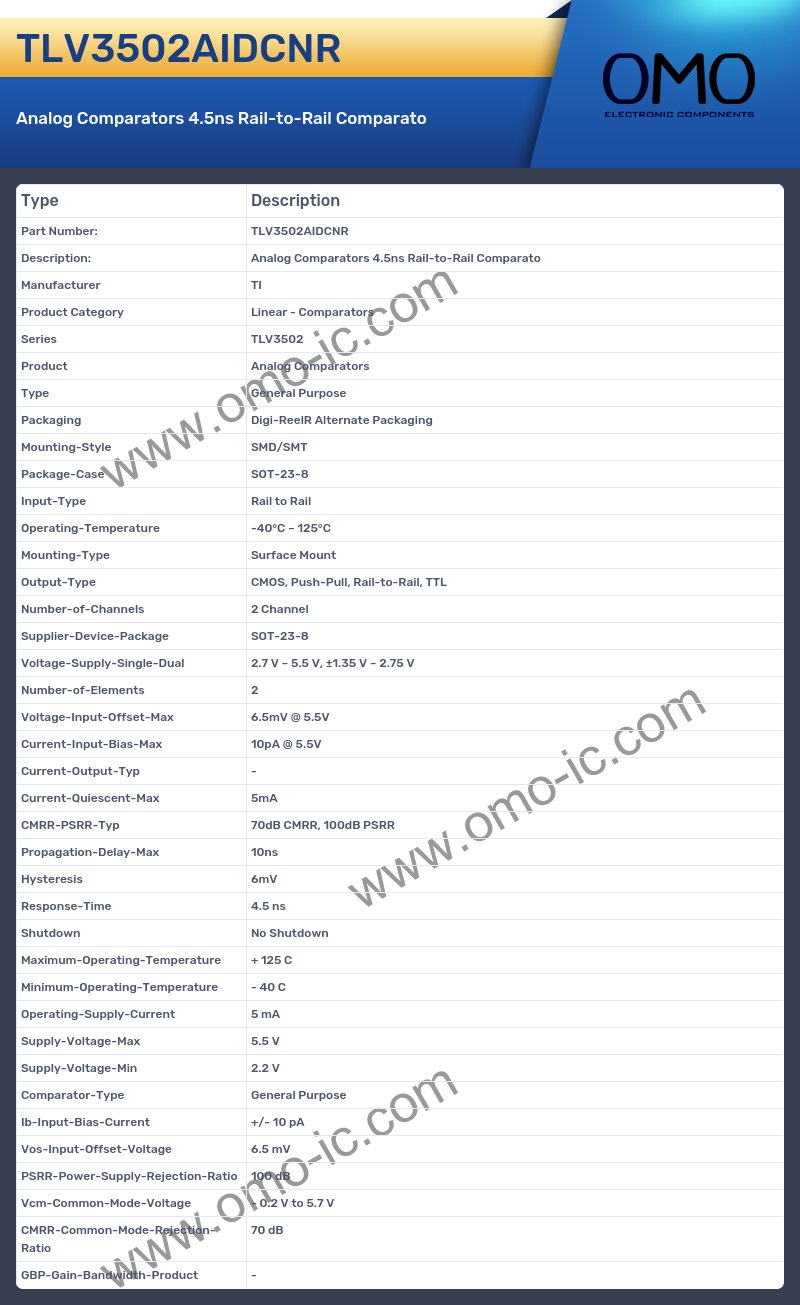

TLV3502AIDCNR Image

TLV3502AIDCNR Specifications

• Manufacturer TI
• Product Category Linear - Comparators
• Series TLV3502
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-23-8
• Input-Type Rail to Rail
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Push-Pull, Rail-to-Rail, TTL
• Number-of-Channels 2 Channel
• Supplier-Device-Package SOT-23-8
• Voltage-Supply-Single-Dual 2.7 V ~ 5.5 V, ±1.35 V ~ 2.75 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 6.5mV @ 5.5V
• Current-Input-Bias-Max 10pA @ 5.5V
• Current-Output-Typ -
• Current-Quiescent-Max 5mA
• CMRR-PSRR-Typ 70dB CMRR, 100dB PSRR
• Propagation-Delay-Max 10ns
• Hysteresis 6mV
• Response-Time 4.5 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.2 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current +/- 10 pA
• Vos-Input-Offset-Voltage 6.5 mV
• PSRR-Power-Supply-Rejection-Ratio 100 dB
• Vcm-Common-Mode-Voltage - 0.2 V to 5.7 V
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product -
