TLV3494AIPWT Overview

Product belongs to the TLV3494 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002018 oz SMD/SMT Mounting-Style TSSOP-14 The Rail to Rail for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, Push-Pull, Rail-to-Rail Number of channels: 4 Channel Supplier device package: 14-TSSOP Voltage supply range: 1.8 V ~ 5.5 V 4 element 1.2μA maximum quiescent current. Maximum propagation delay: 13.5μs Hysteresis value of - 6 us response time Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 1.2 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V General Purpose comparator type Input bias current of 10 pA The 15 mV. The 69.12 dB. The - 0.2 V to 5.7 V. The CMRR-Common-Mode-Rejection-Ratio is 74 dB.

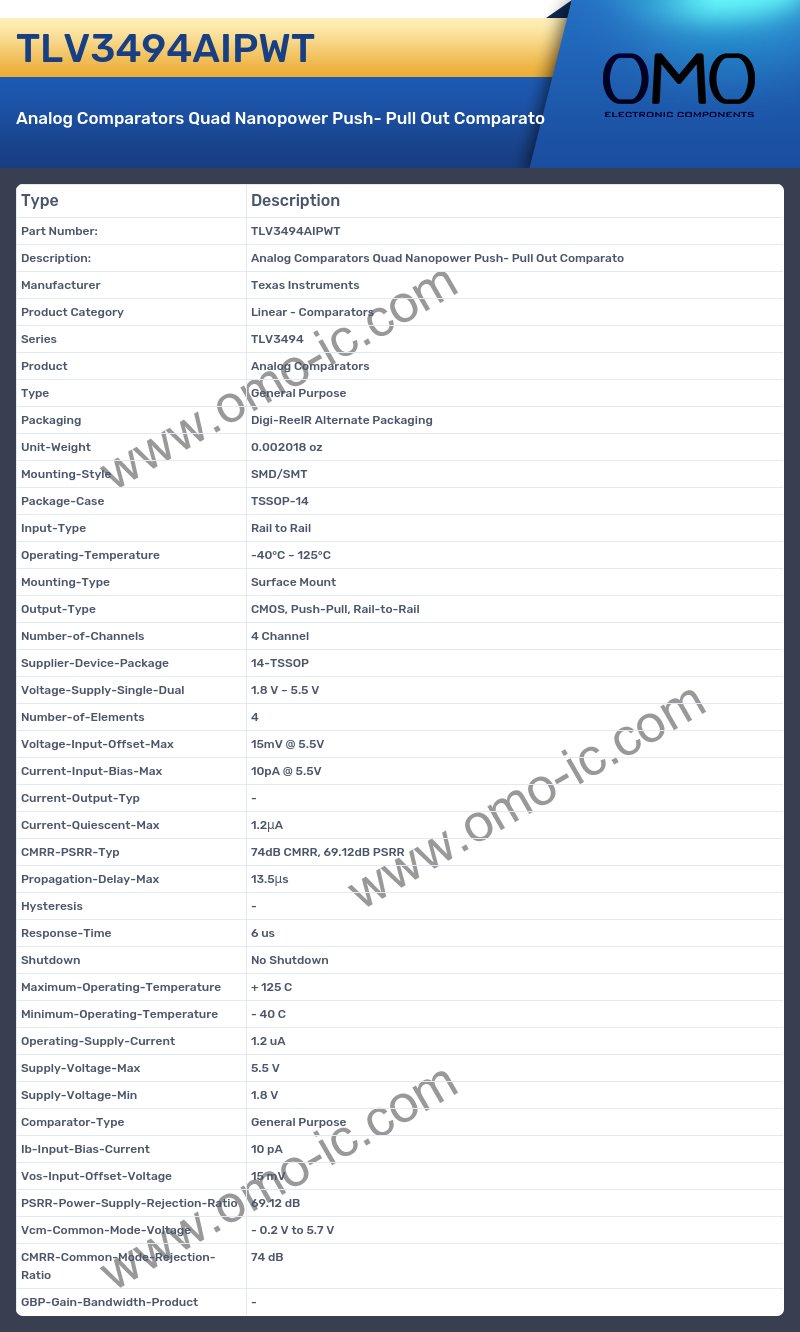

TLV3494AIPWT Image

TLV3494AIPWT Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TLV3494
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002018 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-14
• Input-Type Rail to Rail
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Push-Pull, Rail-to-Rail
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-TSSOP
• Voltage-Supply-Single-Dual 1.8 V ~ 5.5 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 15mV @ 5.5V
• Current-Input-Bias-Max 10pA @ 5.5V
• Current-Output-Typ -
• Current-Quiescent-Max 1.2μA
• CMRR-PSRR-Typ 74dB CMRR, 69.12dB PSRR
• Propagation-Delay-Max 13.5μs
• Hysteresis -
• Response-Time 6 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.2 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 10 pA
• Vos-Input-Offset-Voltage 15 mV
• PSRR-Power-Supply-Rejection-Ratio 69.12 dB
• Vcm-Common-Mode-Voltage - 0.2 V to 5.7 V
• CMRR-Common-Mode-Rejection-Ratio 74 dB
• GBP-Gain-Bandwidth-Product -
