TLV3401IDR

TLV3401IDR Overview

Product belongs to the TLV3401 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style Trade name: LinCMOS. SOIC-8 The Rail to Rail for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, Open-Drain Number of channels: 1 Channel Supplier device package: 8-SOIC Voltage supply range: 2.7 V ~ 16 V, ±1.35 V ~ 8 V 1 element 950nA maximum quiescent current. Maximum propagation delay: 300μs Hysteresis value of - 80 us response time Power-off control: No Shutdown Power-off control: 710 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 550 nA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 2.5 V General Purpose comparator type Input bias current of 250 pA The 3.6 mV. The 105 dB. The - 0.1 V to 21 V. The CMRR-Common-Mode-Rejection-Ratio is 88 dB.

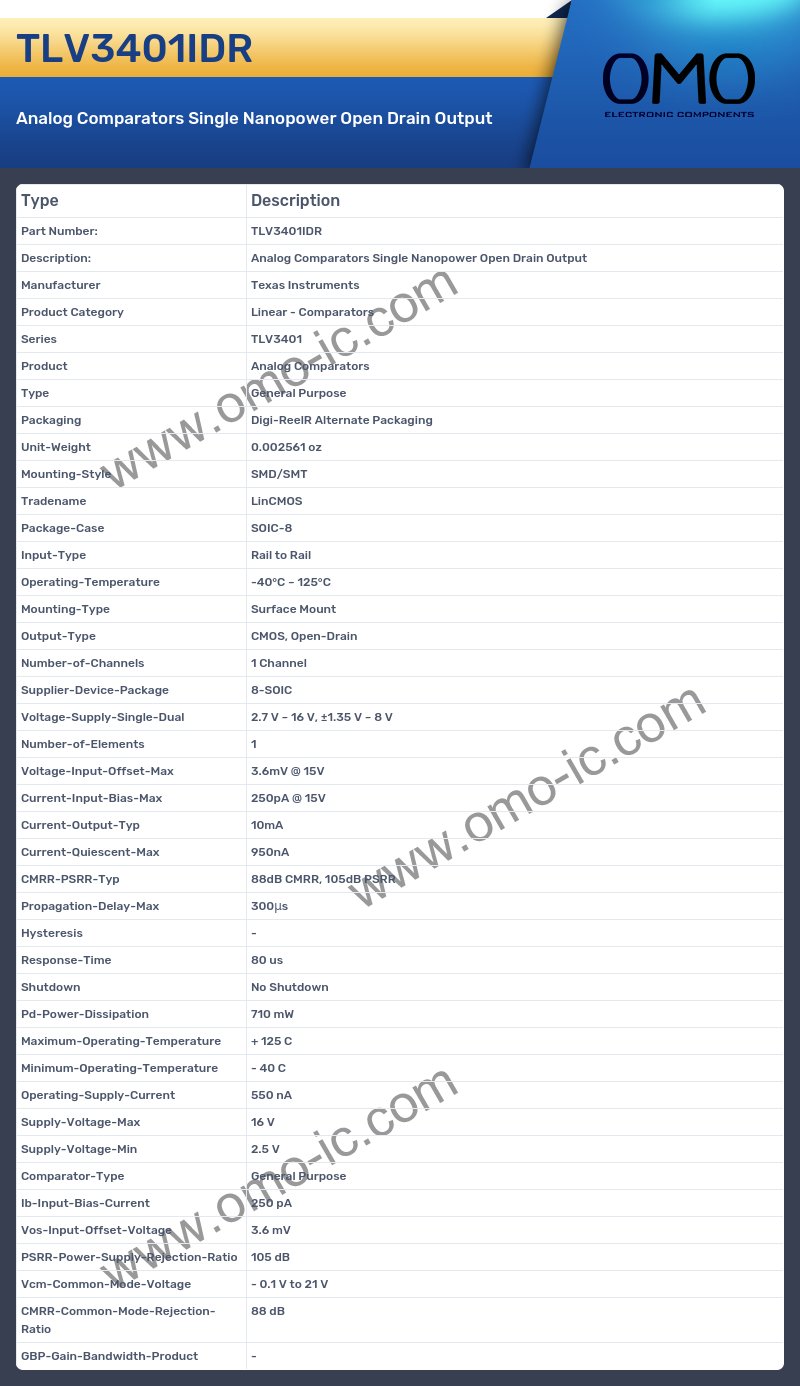

TLV3401IDR Image

TLV3401IDR Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TLV3401
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Tradename LinCMOS
• Package-Case SOIC-8
• Input-Type Rail to Rail
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Open-Drain
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 2.7 V ~ 16 V, ±1.35 V ~ 8 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 3.6mV @ 15V
• Current-Input-Bias-Max 250pA @ 15V
• Current-Output-Typ 10mA
• Current-Quiescent-Max 950nA
• CMRR-PSRR-Typ 88dB CMRR, 105dB PSRR
• Propagation-Delay-Max 300μs
• Hysteresis -
• Response-Time 80 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 710 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 550 nA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 2.5 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 250 pA
• Vos-Input-Offset-Voltage 3.6 mV
• PSRR-Power-Supply-Rejection-Ratio 105 dB
• Vcm-Common-Mode-Voltage - 0.1 V to 21 V
• CMRR-Common-Mode-Rejection-Ratio 88 dB
• GBP-Gain-Bandwidth-Product -
