TLV2302IDGK

TLV2302IDGK Overview

Product belongs to the TLV2302 series. This product is categorized as Analog Comparators Type: Amplifier, Comparator Tube Alternate Packaging is the packaging method for this product Weight of 0.000670 oz SMD/SMT Mounting-Style VSSOP-8 The Rail to Rail for this product is CMOS/TTL. Surface Mount mounting type Output-Type: Open Collector Open Drain Versatile Filter applications for maximum usability Number of channels: 2 Channel Supplier device package: 8-VSSOP 55 us response time Power-off control: No Shutdown Power-off control: 481 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 1.7 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 2.5 V General Purpose comparator type Input bias current of 500 pA The 5 mV. The 105 dB. The - 0.1 V to 21 V. The CMRR-Common-Mode-Rejection-Ratio is 88 dB.

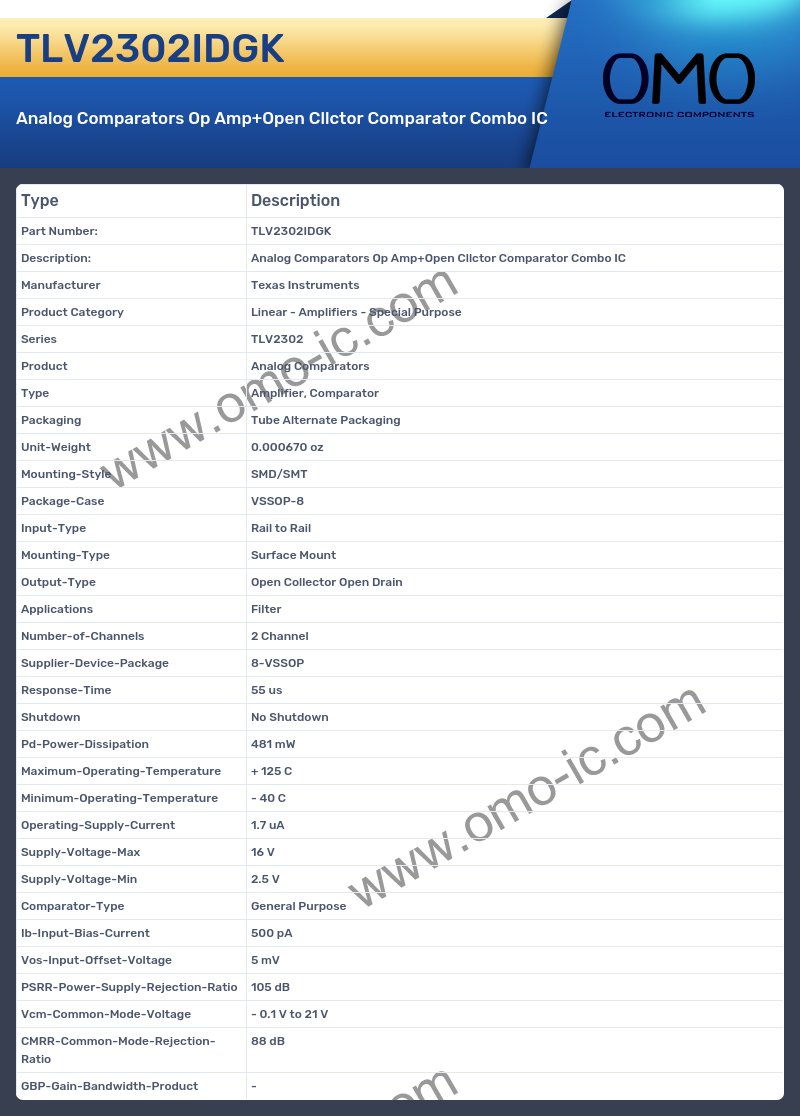

TLV2302IDGK Image

TLV2302IDGK Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Special Purpose
• Series TLV2302
• Product Analog Comparators
• Type Amplifier, Comparator
• Packaging Tube Alternate Packaging
• Unit-Weight 0.000670 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-8
• Input-Type Rail to Rail
• Mounting-Type Surface Mount
• Output-Type Open Collector Open Drain
• Applications Filter
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-VSSOP
• Response-Time 55 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 481 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.7 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 2.5 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 500 pA
• Vos-Input-Offset-Voltage 5 mV
• PSRR-Power-Supply-Rejection-Ratio 105 dB
• Vcm-Common-Mode-Voltage - 0.1 V to 21 V
• CMRR-Common-Mode-Rejection-Ratio 88 dB
• GBP-Gain-Bandwidth-Product -
