TLV1562IDW

TLV1562IDW Overview

Product belongs to the TLV1562 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel/4 Channel Supplier device package: 28-SOIC This product's 2M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration MUX-S/H-ADC The architecture of this product is Pipelined . External is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 58.1 dB Number-of-Converters: 1 Converter 2 MS/s Sampling Rate Analog supply voltage: 2.7 V to 5.5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: - 0.85 /1.5 LSB

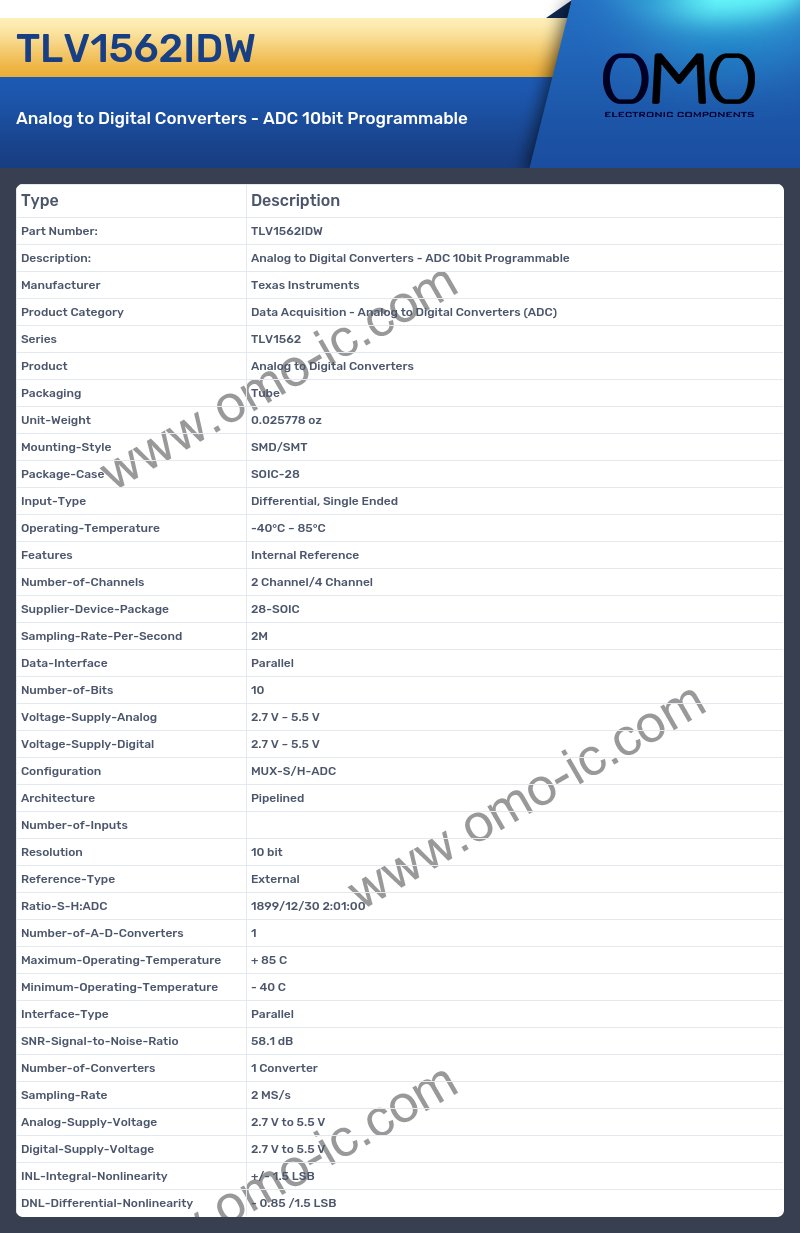

TLV1562IDW Image

TLV1562IDW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLV1562
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 2 Channel/4 Channel
• Supplier-Device-Package 28-SOIC
• Sampling-Rate-Per-Second 2M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration MUX-S/H-ADC
• Architecture Pipelined
• Number-of-Inputs
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 2:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 58.1 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 2 MS/s
• Analog-Supply-Voltage 2.7 V to 5.5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity - 0.85 /1.5 LSB
