TLC59282DBQ

TLC59282DBQ Overview

Product belongs to the TLC59282 series. Type: Linear Bulk Alternate Packaging is the packaging method for this product Weight of 0.007764 oz SMD/SMT Mounting-Style SSOP-24 This product's 35MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Constant Current Versatile - applications for maximum usability Supplier device package: 24-SSOP/QSOP Number-of-Outputs: 16 Current-Output-Channel is 45mA This product has Yes. Topology: Shift Register feedback The maximum voltage supply is 5.5V. The minimum 3V required for voltage supply. Output voltage: 17V Dimming control is done through - communication. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The operating frequency is 35 MHz. Input Voltage Range: 3 V to 5.5 V Output current: 45 mA Maximum supply current: 34 mA High-Level-Output-Current of - 1 mA 1 mA low-level output current

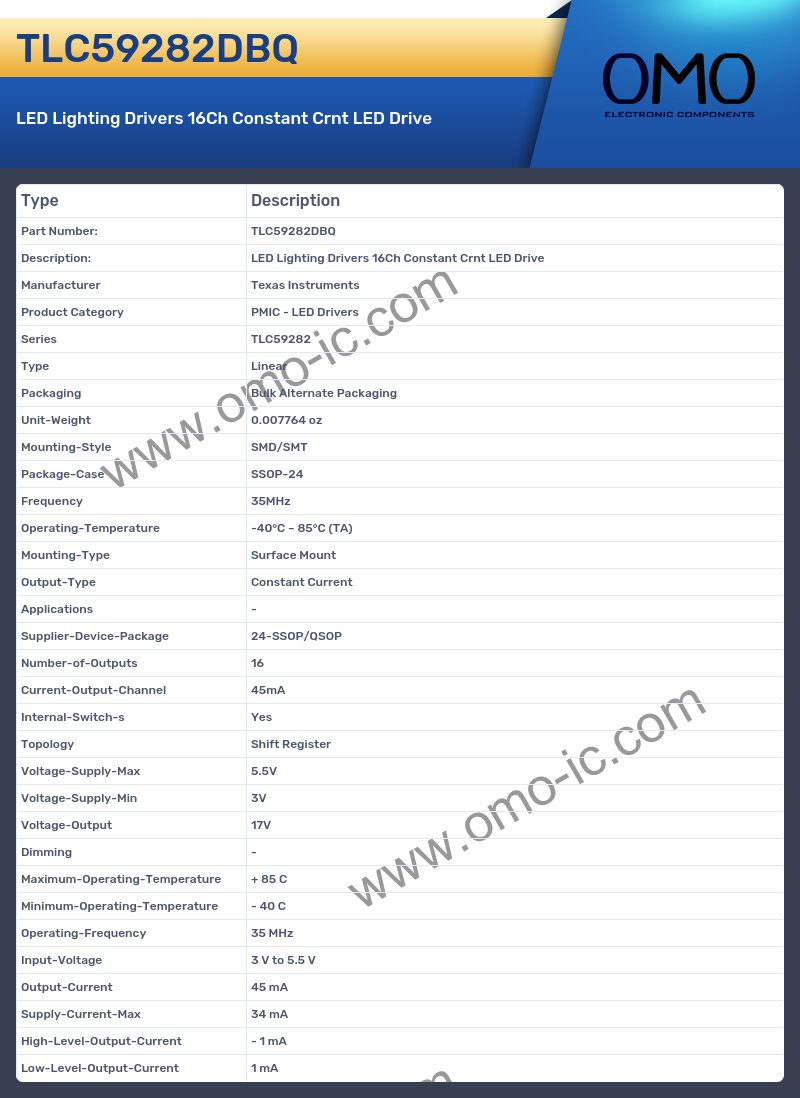

TLC59282DBQ Image

TLC59282DBQ Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TLC59282
• Type Linear
• Packaging Bulk Alternate Packaging
• Unit-Weight 0.007764 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-24
• Frequency 35MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Constant Current
• Applications -
• Supplier-Device-Package 24-SSOP/QSOP
• Number-of-Outputs 16
• Current-Output-Channel 45mA
• Internal-Switch-s Yes
• Topology Shift Register
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 3V
• Voltage-Output 17V
• Dimming -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency 35 MHz
• Input-Voltage 3 V to 5.5 V
• Output-Current 45 mA
• Supply-Current-Max 34 mA
• High-Level-Output-Current - 1 mA
• Low-Level-Output-Current 1 mA
