TLC1541IN

TLC1541IN Overview

Product belongs to the TLC1541 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 12 Channel Supplier device package: 20-PDIP This product's 32k. Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 6 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Number-of-Converters: 1 Converter 32 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.5 V Digital Supply Voltage: 4.75 V to 5.5 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

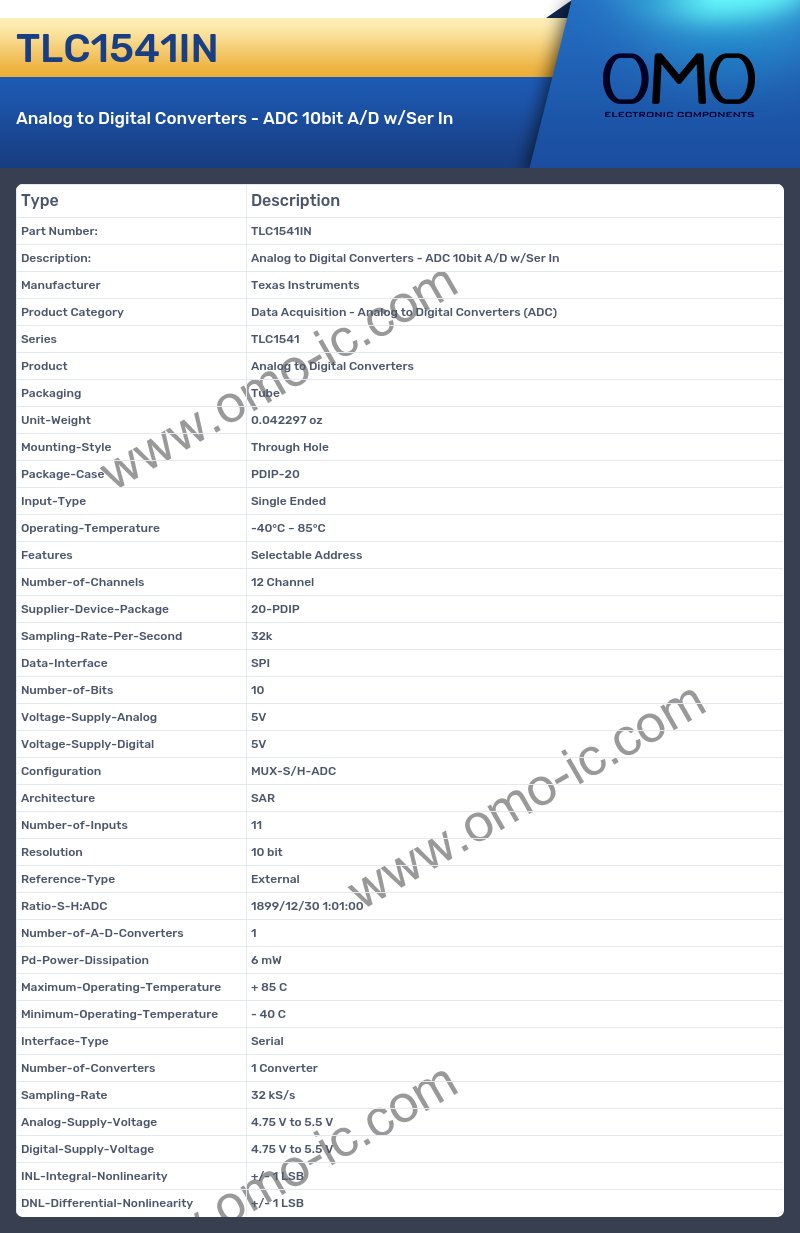

TLC1541IN Image

TLC1541IN Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC1541
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Selectable Address
• Number-of-Channels 12 Channel
• Supplier-Device-Package 20-PDIP
• Sampling-Rate-Per-Second 32k
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 11
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 6 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• Number-of-Converters 1 Converter
• Sampling-Rate 32 kS/s
• Analog-Supply-Voltage 4.75 V to 5.5 V
• Digital-Supply-Voltage 4.75 V to 5.5 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
