TL7770-5IDWR

TL7770-5IDWR Overview

Product belongs to the TL7770-5 series. Type: Multi-Voltage Supervisor Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.014829 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Collector / Drain Supplier device package: 16-SOIC The Complementary. This product's Active High/Active Low. This product has 2 monitored voltages. The reset timeout for this product is 270 ns Typical Propagation Delay. This product's 5V, Adj. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 5000 uA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 3.5 V This product includes No Watchdog This product can only 2 Input at a time. This product features a Manual Reset function that allows for manual reset. The product's Adjustable is 200 ms. The Adjustable is 2.35 V. Adjustable 4.46 V is set to 2.29 V.

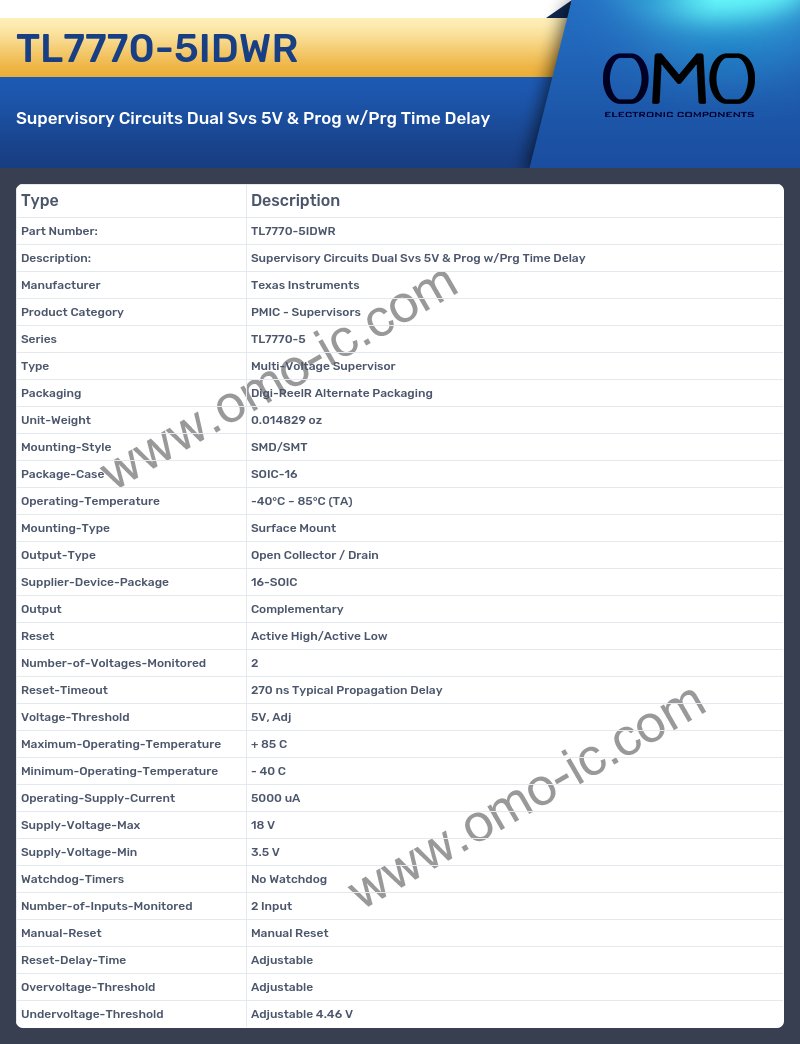

TL7770-5IDWR Image

TL7770-5IDWR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TL7770-5
• Type Multi-Voltage Supervisor
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.014829 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Collector / Drain
• Supplier-Device-Package 16-SOIC
• Output Complementary
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 2
• Reset-Timeout 270 ns Typical Propagation Delay
• Voltage-Threshold 5V, Adj
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5000 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 3.5 V
• Watchdog-Timers No Watchdog
• Number-of-Inputs-Monitored 2 Input
• Manual-Reset Manual Reset
• Reset-Delay-Time Adjustable
• Overvoltage-Threshold Adjustable
• Undervoltage-Threshold Adjustable 4.46 V
