TL7733BIP

TL7733BIP Overview

Product belongs to the TL7733B series. Type: Simple Reset/Power-On Reset Tube is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Active High Active Low Open Drain Supplier device package: 8-PDIP The Complementary. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 270 ns Typical Propagation Delay. This product's 3.08V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 1800 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 18 V Minimum supply voltage is 3.6 V This product includes No Watchdog This product's 3.08 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. The product's Programmable is 200 ms. The 3.13 V is 2.35 V. 3.03 V is set to 2.29 V.

TL7733BIP Image

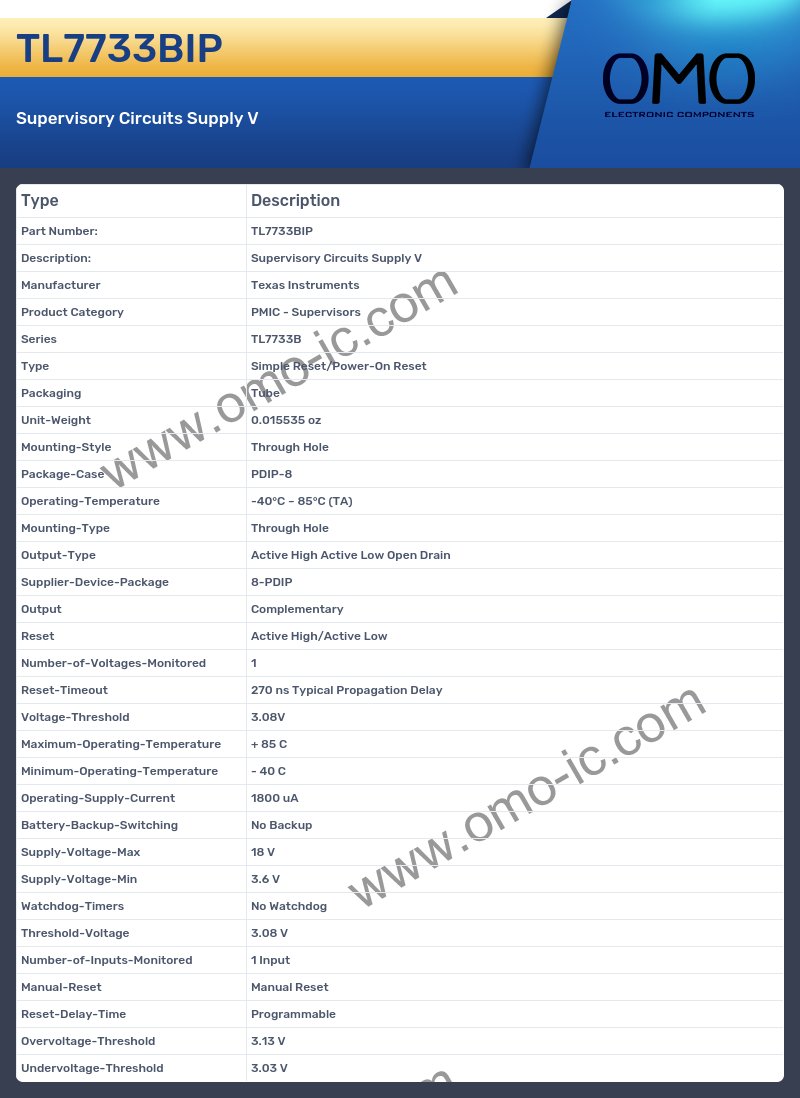

TL7733BIP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TL7733B
• Type Simple Reset/Power-On Reset
• Packaging Tube
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Active High Active Low Open Drain
• Supplier-Device-Package 8-PDIP
• Output Complementary
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 270 ns Typical Propagation Delay
• Voltage-Threshold 3.08V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1800 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 3.6 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 3.08 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Reset-Delay-Time Programmable
• Overvoltage-Threshold 3.13 V
• Undervoltage-Threshold 3.03 V
