| Mfr. #: | TL7660IDR |
|---|---|
| Produttore: | Texas Instruments |
| Descrizione: | Voltage Regulators - Switching Regulators CMOS Voltage Converte |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | TL7660IDR Scheda dati |
Product belongs to the TL7660 series. Type: Charge Pump DC/DC Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002469 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 10kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is -Vin, 2Vin . The value of No is included as a product attribute. The minimum input voltage is 1.5V. The 10V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: - 1.5 V to - 10 V 3 V to 20 V 135 uA is 92 nA. Maximum Input Voltage: 10 V Output current: 20 uA Switching frequency is 10 kHz
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

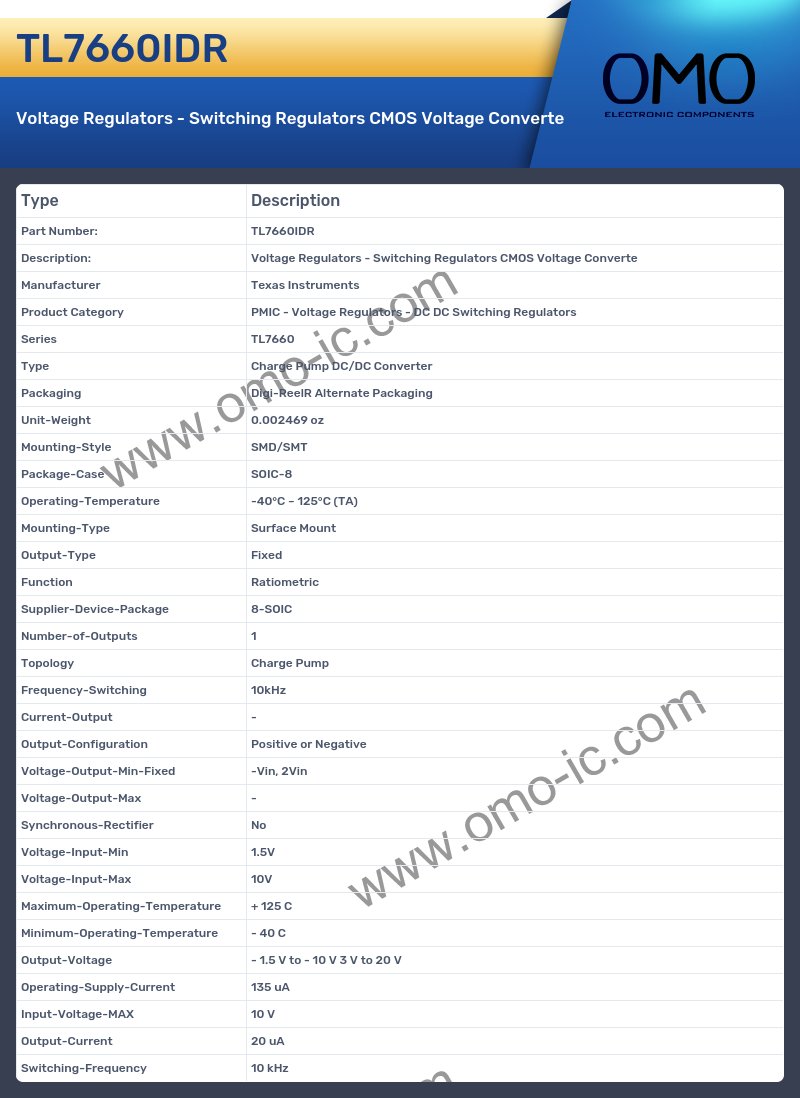

TL7660IDR Specifications
