TL1451CNSR

TL1451CNSR Overview

Product belongs to the TL1451 series. This product is categorized as PWM Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SOP-16 Operational temperature range: -20°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 16-SO Number-of-Outputs: 2 Topology: Buck, Boost, Flyback feedback Supply Voltage: 3.6 V ~ 50 V This product features 'Frequency-Switching' at 1kHz ~ 500kHz for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of No is included as a product attribute. No enabled Serial Interfaces: - The product's Non-Isolated is non-isolated. Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C This product operates at a 6 V supply voltage for reliable performance. Output voltage: 2.5 V 1.7 mA is 92 nA. Input Voltage Range: 6 V Output current: 20 mA Switching frequency is 500 kHz

TL1451CNSR Image

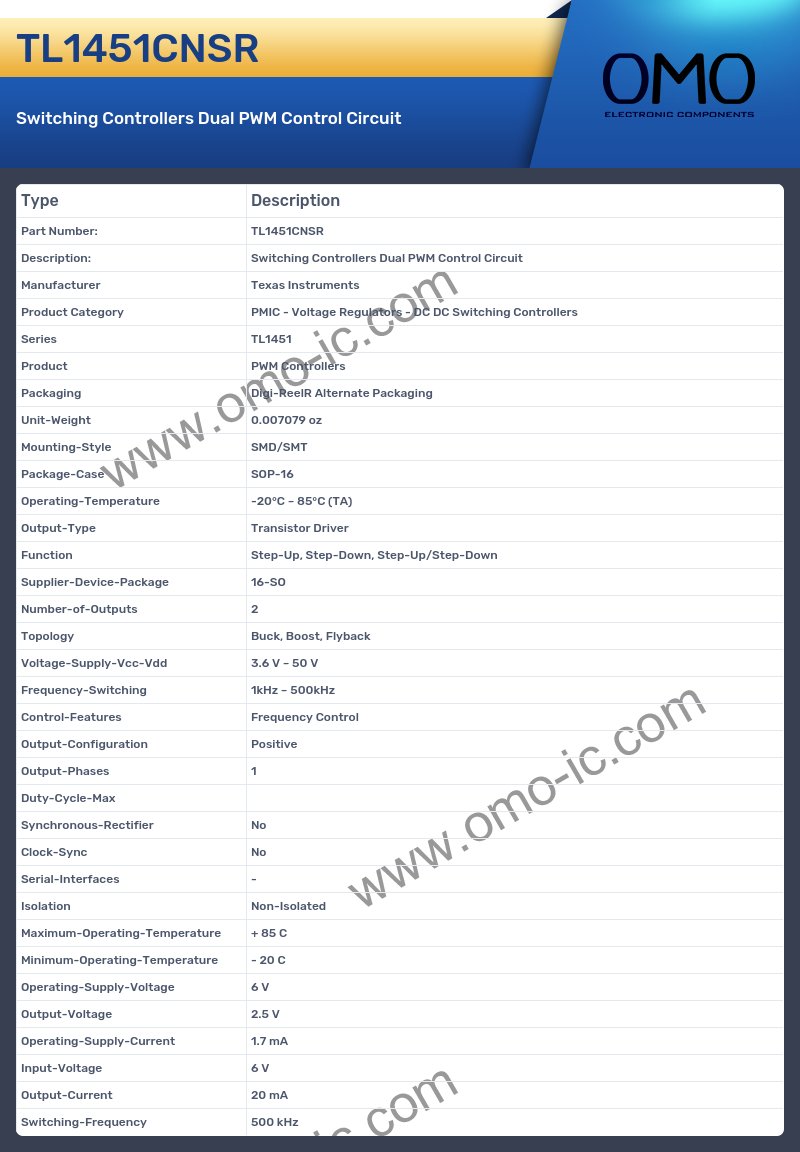

TL1451CNSR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TL1451
• Product PWM Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-16
• Operating-Temperature -20°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-SO
• Number-of-Outputs 2
• Topology Buck, Boost, Flyback
• Voltage-Supply-Vcc-Vdd 3.6 V ~ 50 V
• Frequency-Switching 1kHz ~ 500kHz
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 20 C
• Operating-Supply-Voltage 6 V
• Output-Voltage 2.5 V
• Operating-Supply-Current 1.7 mA
• Input-Voltage 6 V
• Output-Current 20 mA
• Switching-Frequency 500 kHz
