| Mfr. #: | TIP105 |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | TRANS PNP DARL 60V 8A TO-220 |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | TIP105 Scheda dati |
Product belongs to the Darlingtons series. Tube is the packaging method for this product The TIP105_NL is listed as a Part-Aliase. Weight of 0.042823 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220AB Configuration Single Transistor type: PNP - Darlington Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 2000 @ 3A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 80mA, 8A Power-off control: 2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to - 60 V The transistor polarity is PNP. The - 60 V voltage rating is 40 V. - 5 V rating of 5 V Max DC collector current: - 8 A Minimum hfe for DC collector-base gain is 1000 at 3 A at 4 V 200 at 8 A at 4 V. - 50 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

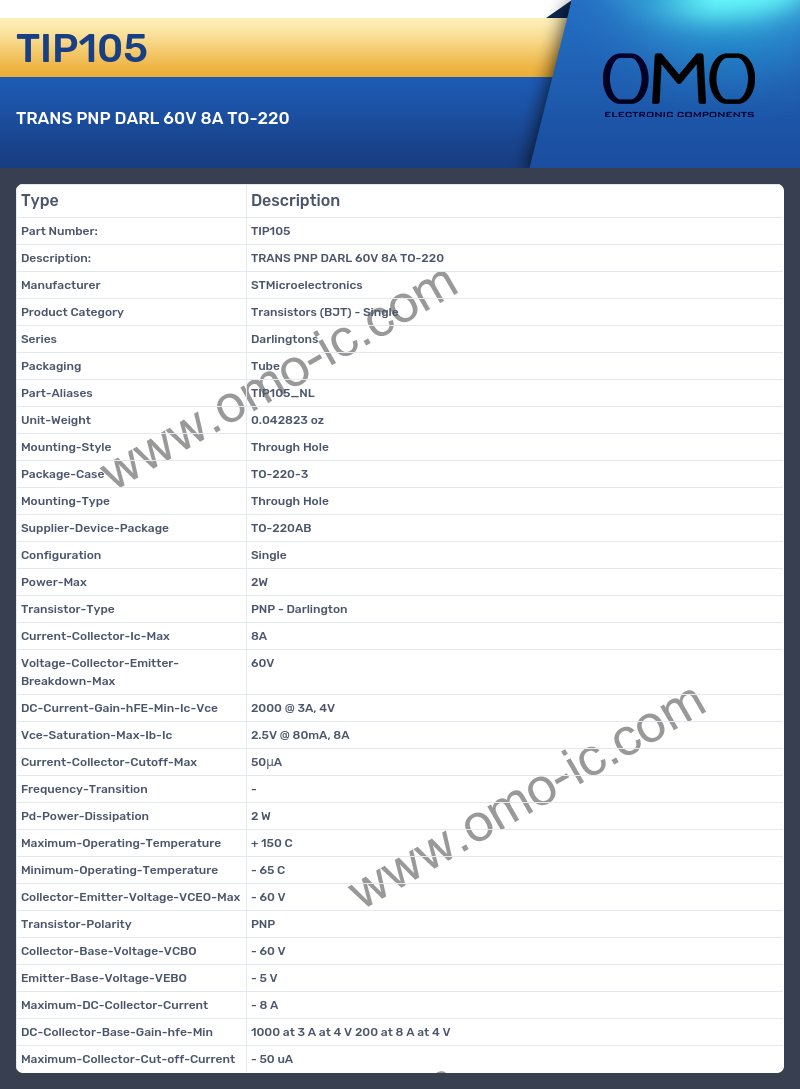

TIP105 Specifications
A: At what frequency does the Series?
Q: The product Series is Darlingtons.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: What is the Part-Aliases of the product?
Q: The Part-Aliases of the product is TIP105_NL.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.042823 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220AB.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed PNP - Darlington
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 8A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 60V.
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 2000 @ 3A, 4V.
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 2.5V @ 80mA, 8A.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 2 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 65 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed - 60 V
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed PNP
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is - 60 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is - 5 V.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is - 8 A.
A: What is the DC-Collector-Base-Gain-hfe-Min of the product?
Q: The DC-Collector-Base-Gain-hfe-Min of the product is 1000 at 3 A at 4 V 200 at 8 A at 4 V.
A: Is the cutoff frequency of the product Maximum-Collector-Cut-off-Current?
Q: Yes, the product's Maximum-Collector-Cut-off-Current is indeed - 50 uA
