| Mfr. #: | TIP102 |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | TRANS NPN DARL 100V 8A TO220AB |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | TIP102 Scheda dati |
Product belongs to the Darlingtons series. Bulk Alternate Packaging is the packaging method for this product The TIP102_NL is listed as a Part-Aliase. Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220-3 Configuration Single Transistor type: NPN - Darlington Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 3A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 80mA, 8A Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 100 V The transistor polarity is NPN. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 8 A Minimum hfe for DC collector-base gain is 200. 50 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

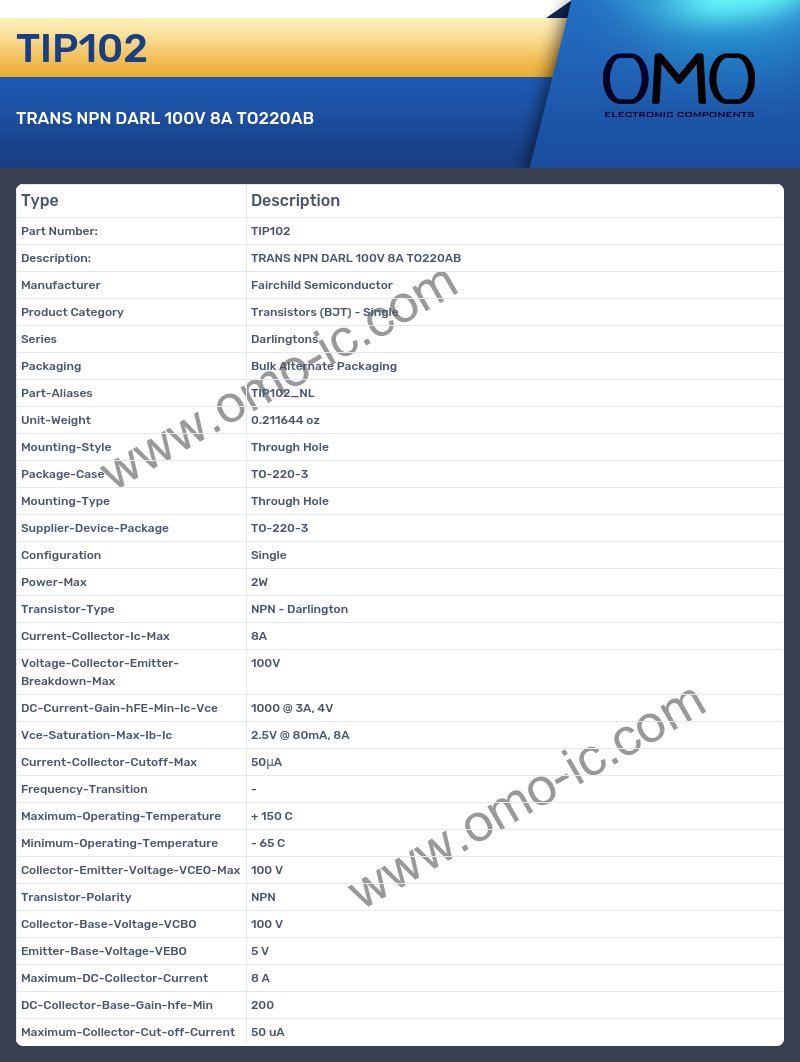

TIP102 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed Darlingtons
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Bulk Alternate Packaging
A: Is the cutoff frequency of the product Part-Aliases?
Q: Yes, the product's Part-Aliases is indeed TIP102_NL
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.211644 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-220-3.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220-3.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is NPN - Darlington.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 8A
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 100V
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 1000 @ 3A, 4V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 2.5V @ 80mA, 8A
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 65 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 100 V.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is NPN.
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is 100 V.
A: Is the cutoff frequency of the product Emitter-Base-Voltage-VEBO?
Q: Yes, the product's Emitter-Base-Voltage-VEBO is indeed 5 V
A: At what frequency does the Maximum-DC-Collector-Current?
Q: The product Maximum-DC-Collector-Current is 8 A.
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 200
A: Is the cutoff frequency of the product Maximum-Collector-Cut-off-Current?
Q: Yes, the product's Maximum-Collector-Cut-off-Current is indeed 50 uA
