THS1230IPW

THS1230IPW Overview

Product belongs to the THS1230 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-TSSOP This product's 30M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 220 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 68 dB The THS1230EVM. Number-of-Converters: 1 Converter 30 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: - 2.5 /2 LSB Differential nonlinearity: +/- 1 LSB

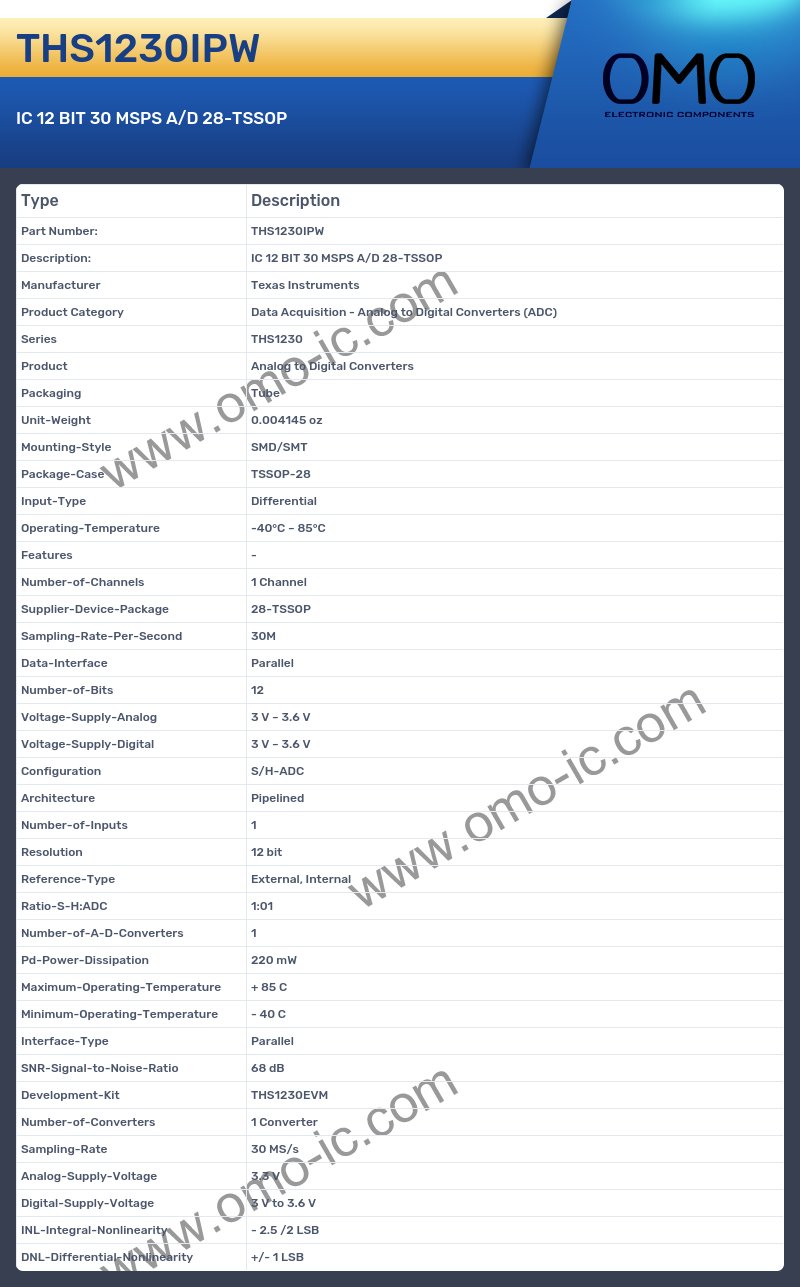

THS1230IPW Image

THS1230IPW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series THS1230
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-TSSOP
• Sampling-Rate-Per-Second 30M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 220 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 68 dB
• Development-Kit THS1230EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 30 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity - 2.5 /2 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
