THS1031CPWR

THS1031CPWR Overview

Product belongs to the THS1031 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004145 oz SMD/SMT Mounting-Style TSSOP-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 28-TSSOP This product's 30M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 3 V ~ 5.5 V. The Voltage Supply Digital for this product is 3 V ~ 5.5 V. Configuration S/H-PGA-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 135 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Signal-to-Noise Ratio of 56 dB The THS1031EVM. Number-of-Converters: 1 Converter 30 MS/s Sampling Rate Analog supply voltage: 3 V to 5.5 V Digital Supply Voltage: 3 V to 5.5 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 1 LSB

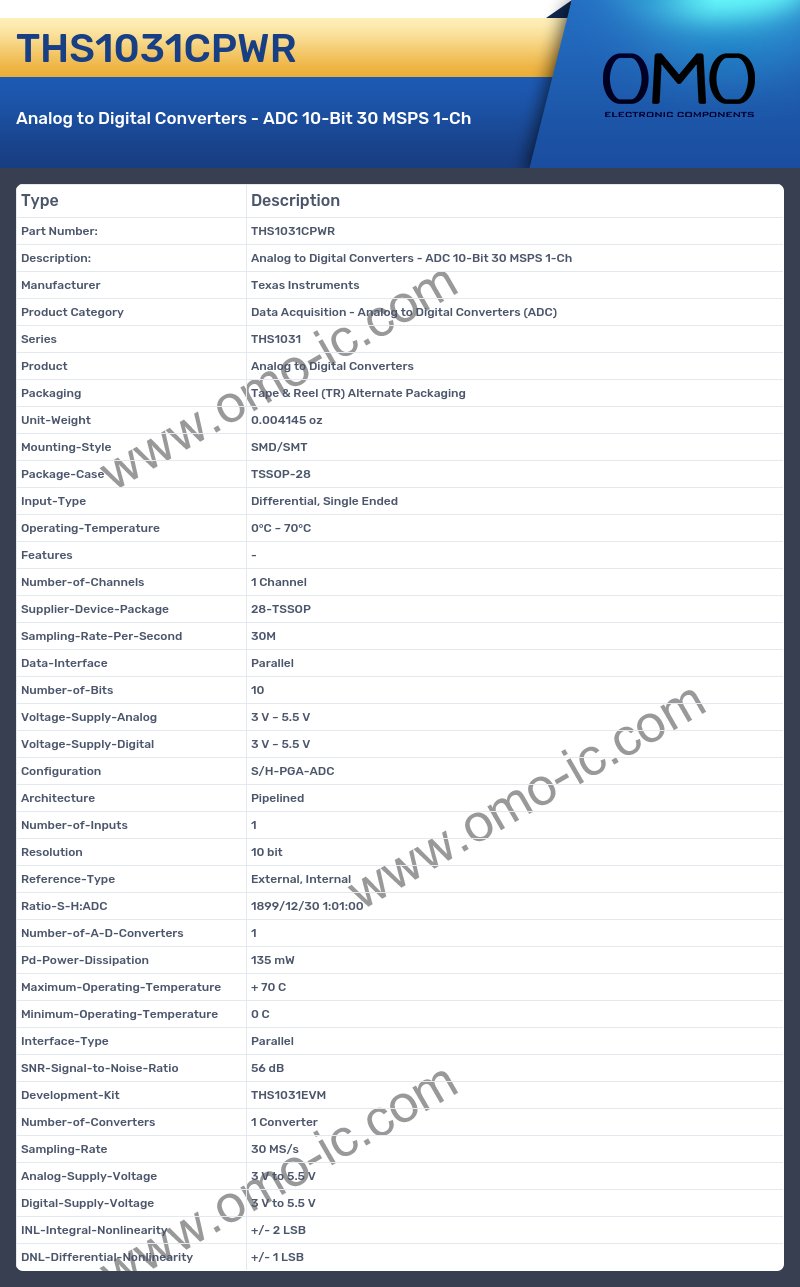

THS1031CPWR Image

THS1031CPWR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series THS1031
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004145 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Input-Type Differential, Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-TSSOP
• Sampling-Rate-Per-Second 30M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 3 V ~ 5.5 V
• Voltage-Supply-Digital 3 V ~ 5.5 V
• Configuration S/H-PGA-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 135 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 56 dB
• Development-Kit THS1031EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 30 MS/s
• Analog-Supply-Voltage 3 V to 5.5 V
• Digital-Supply-Voltage 3 V to 5.5 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
