TC7662AIJA Overview

Product belongs to the - series. Type: Buck Tube is the packaging method for this product Through Hole Mounting-Style CDIP-8 Operational temperature range: -25°C ~ 85°C (TA) Through Hole mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: 8-CERDIP Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 12kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is -Vin, 2Vin . The value of No is included as a product attribute. The minimum input voltage is 3V. The 18V. Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Output voltage: - 3 V to - 18 V 510 uA is 92 nA. Input Voltage Range: 3 V to + 18 V Maximum Input Voltage: 18 V Output current: 40 mA Switching frequency is 12 kHz

TC7662AIJA Image

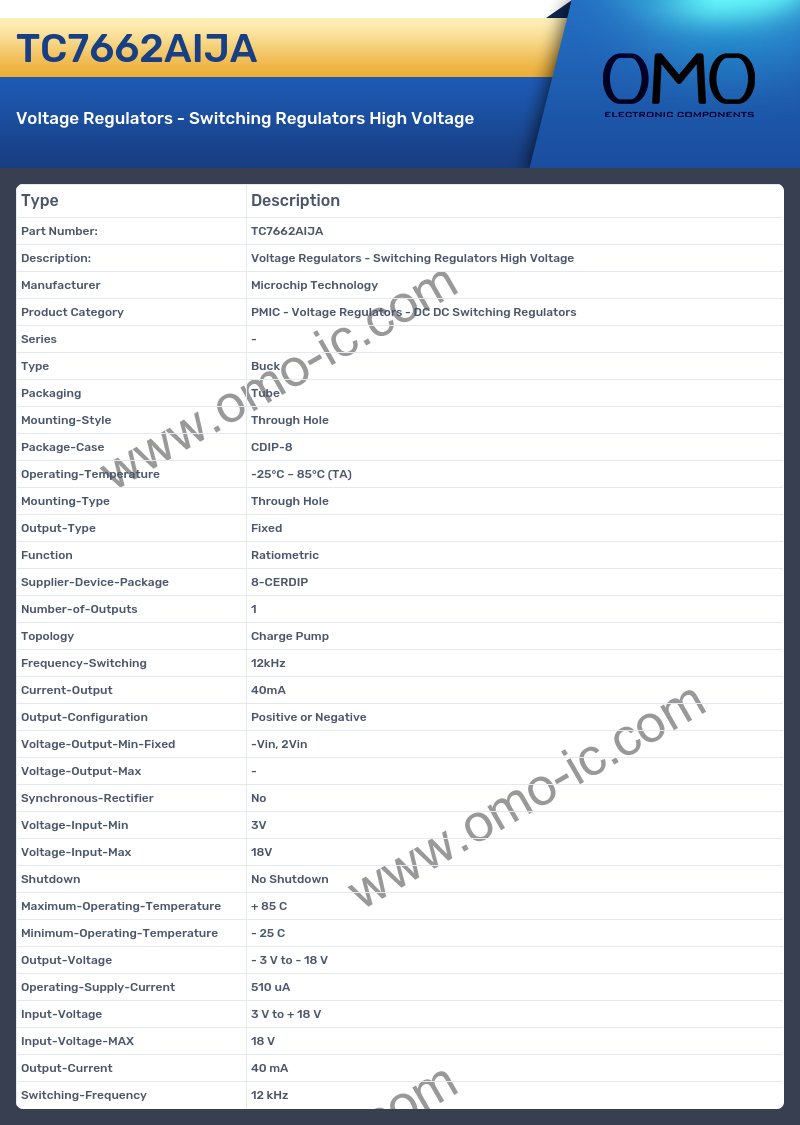

TC7662AIJA Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series -
• Type Buck
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-8
• Operating-Temperature -25°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Function Ratiometric
• Supplier-Device-Package 8-CERDIP
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 12kHz
• Current-Output 40mA
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed -Vin, 2Vin
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 3V
• Voltage-Input-Max 18V
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Output-Voltage - 3 V to - 18 V
• Operating-Supply-Current 510 uA
• Input-Voltage 3 V to + 18 V
• Input-Voltage-MAX 18 V
• Output-Current 40 mA
• Switching-Frequency 12 kHz
