TC6503N015VCTTR

TC6503N015VCTTR Overview

Product belongs to the - series. This product is categorized as Single Trip Switch Digi-ReelR Alternate Packaging is the packaging method for this product SOT-23A-5 Operational temperature range: -55°C ~ 135°C Surface Mount mounting type Output-Type: Open Drain Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: SOT-23-5 The Active Low. Configuration Local This product has a 17μA of 200μA. The /UnderTemp of this product includes /OverTemp and /UnderTemp signals. Accuracy is rated at ±4°C . Our product delivers a 20mA of 50mA for efficient power management. Power-off control: No Shutdown The -15°C. Our product features a Cold for optimal temperature regulation. Our product features a Yes for customizable control. Maximum operating temperature of + 135 C Minimum operating temperature: - 55 C 40 uA is 92 nA. Output current: 20 mA Maximum supply voltage of 5.5 VDC Minimum supply voltage is 2.7 VDC - 15 C temperature threshold

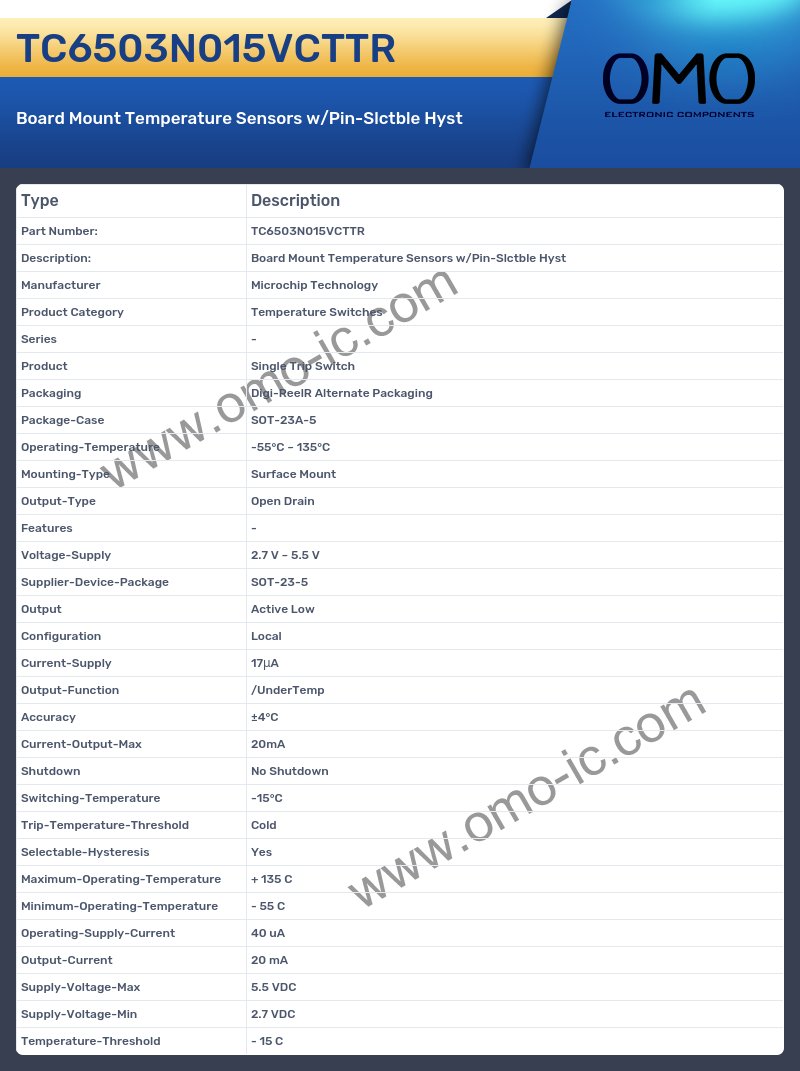

TC6503N015VCTTR Image

TC6503N015VCTTR Specifications

• Manufacturer Microchip Technology
• Product Category Temperature Switches
• Series -
• Product Single Trip Switch
• Packaging Digi-ReelR Alternate Packaging
• Package-Case SOT-23A-5
• Operating-Temperature -55°C ~ 135°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Features -
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package SOT-23-5
• Output Active Low
• Configuration Local
• Current-Supply 17μA
• Output-Function /UnderTemp
• Accuracy ±4°C
• Current-Output-Max 20mA
• Shutdown No Shutdown
• Switching-Temperature -15°C
• Trip-Temperature-Threshold Cold
• Selectable-Hysteresis Yes
• Maximum-Operating-Temperature + 135 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 40 uA
• Output-Current 20 mA
• Supply-Voltage-Max 5.5 VDC
• Supply-Voltage-Min 2.7 VDC
• Temperature-Threshold - 15 C
