TC1016-3.3VLTTR

TC1016-3.3VLTTR Overview

Product belongs to the - series. This product is categorized as LDO Voltage Regulator Type: LDO Regulator with Shutdown Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000705 oz SMD/SMT Mounting-Style SC-70-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SC-70-5 Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 155 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V 53 uA is 92 nA. Maximum Input Voltage: 6 V Output current: 80 mA The product's 2.7 V is 5.1 V. Load regulation is 0.23 %. The voltage regulation accuracy of this product is 0.5 %. Input bias current of 53 uA The 0.002 V at 100 uA. The maximum 300 mV is 360 mV. This product's 0.01 % / V is 0.01 %/V. The product's 58 dB is -20 dB.

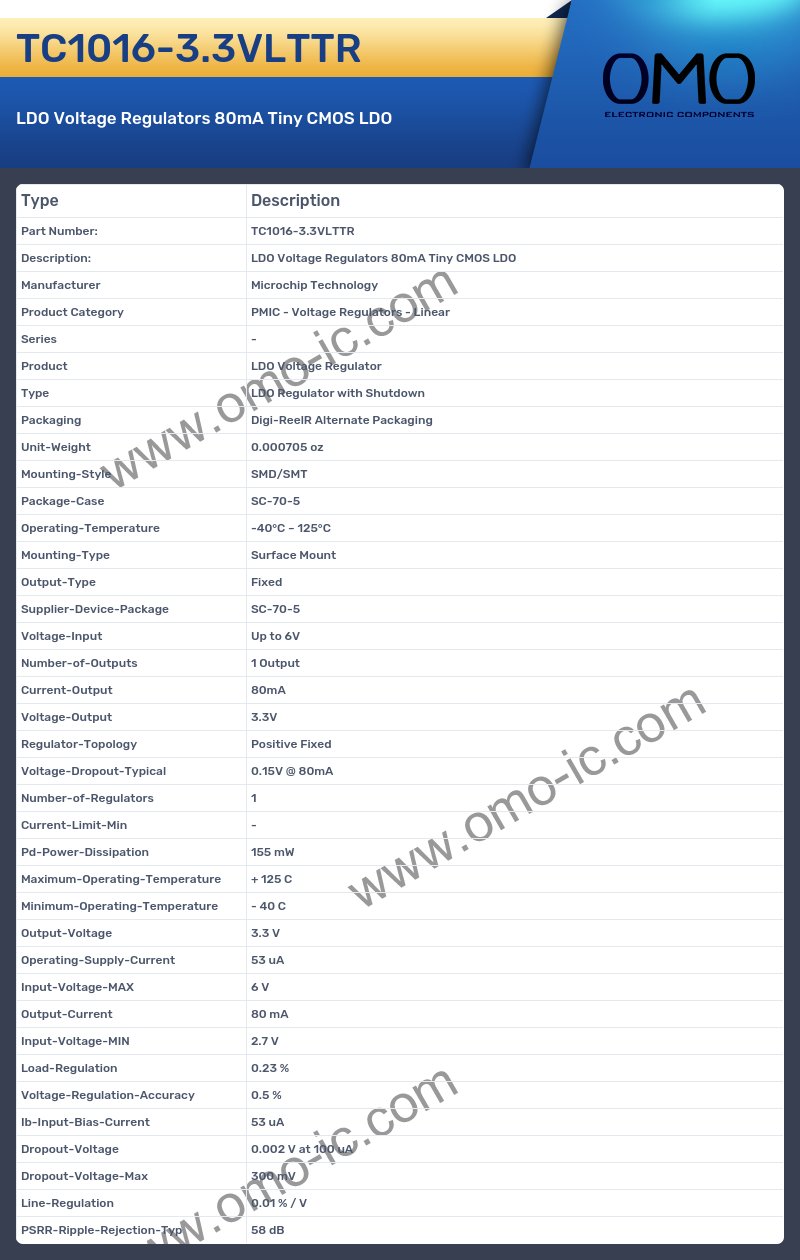

TC1016-3.3VLTTR Image

TC1016-3.3VLTTR Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Voltage Regulator
• Type LDO Regulator with Shutdown
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000705 oz
• Mounting-Style SMD/SMT
• Package-Case SC-70-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SC-70-5
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 80mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.15V @ 80mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 155 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Operating-Supply-Current 53 uA
• Input-Voltage-MAX 6 V
• Output-Current 80 mA
• Input-Voltage-MIN 2.7 V
• Load-Regulation 0.23 %
• Voltage-Regulation-Accuracy 0.5 %
• Ib-Input-Bias-Current 53 uA
• Dropout-Voltage 0.002 V at 100 uA
• Dropout-Voltage-Max 300 mV
• Line-Regulation 0.01 % / V
• PSRR-Ripple-Rejection-Typ 58 dB
