STY145N65M5

STY145N65M5 Overview

Product belongs to the MDmesh V series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 Si is the technology used. Operational temperature range: 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: MAX247 Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 650V This product has an 18500pF @ 100V value of 300pF @ 25V. This product's Standard. 138A (Tc) continuous drain-ID current at 25°C; This product has an 15 mOhm @ 69A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 625 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 82 ns of 16 ns. This product has a 11 ns of 16 ns. This product's 25 V. The ID of continuous drain current is 138 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 650 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 15 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 414 nC.

STY145N65M5 Image

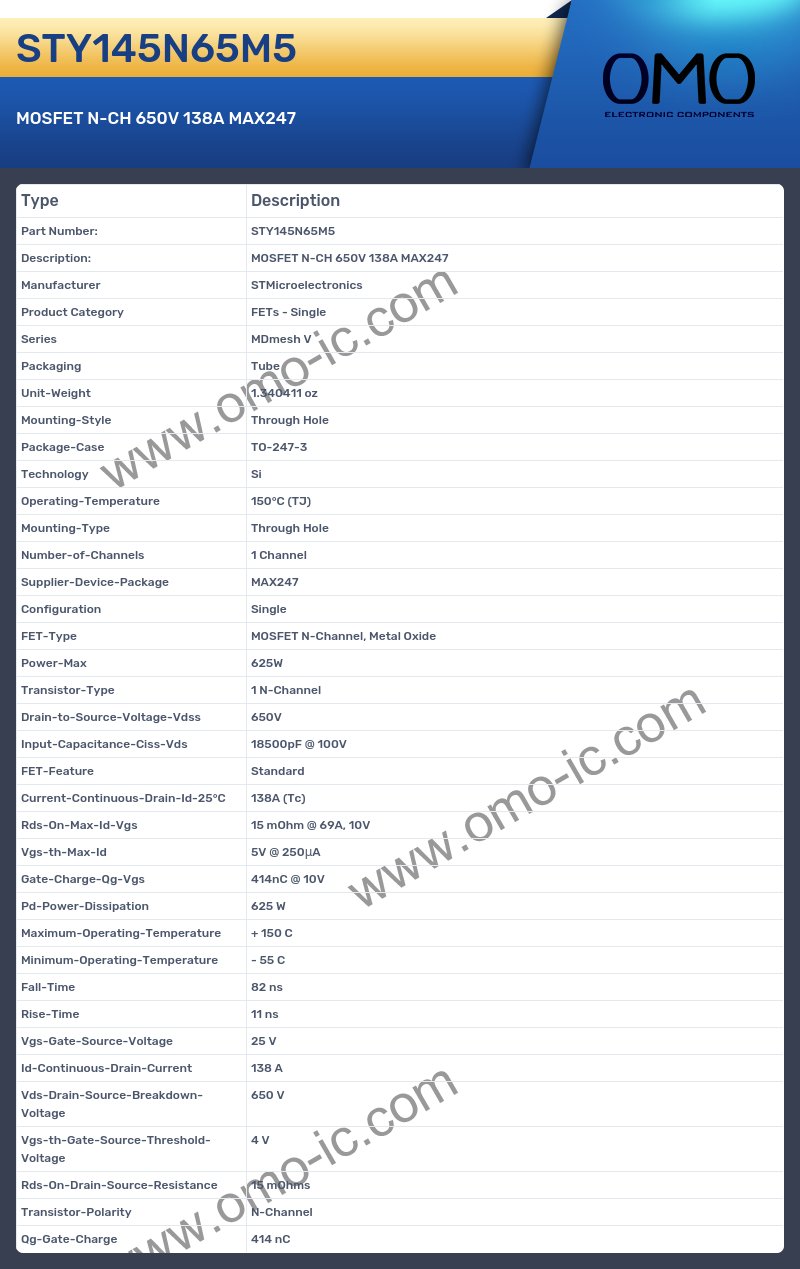

STY145N65M5 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series MDmesh V
• Packaging Tube
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Technology Si
• Operating-Temperature 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package MAX247
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 625W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 650V
• Input-Capacitance-Ciss-Vds 18500pF @ 100V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 138A (Tc)
• Rds-On-Max-Id-Vgs 15 mOhm @ 69A, 10V
• Vgs-th-Max-Id 5V @ 250μA
• Gate-Charge-Qg-Vgs 414nC @ 10V
• Pd-Power-Dissipation 625 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 82 ns
• Rise-Time 11 ns
• Vgs-Gate-Source-Voltage 25 V
• Id-Continuous-Drain-Current 138 A
• Vds-Drain-Source-Breakdown-Voltage 650 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 15 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 414 nC
