STX83003 Overview

Product belongs to the STX83003 series. Bulk is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92-3 Configuration Single Power-off control: 1.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 400 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 0.5 V The 700 V voltage rating is 40 V. 12 V rating of 5 V Max DC collector current: 1.5 A This product is capable of handling a 1 A continuous collector current. Minimum hfe for DC collector-base gain is 4. 32 of 605.

STX83003 Image

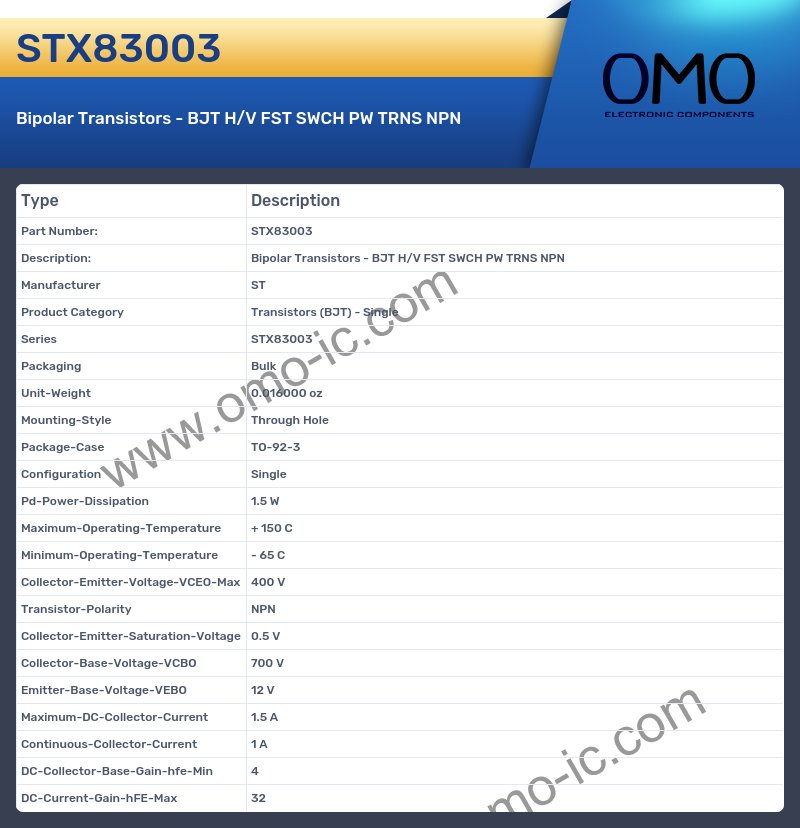

STX83003 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series STX83003
• Packaging Bulk
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-92-3
• Configuration Single
• Pd-Power-Dissipation 1.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 400 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 0.5 V
• Collector-Base-Voltage-VCBO 700 V
• Emitter-Base-Voltage-VEBO 12 V
• Maximum-DC-Collector-Current 1.5 A
• Continuous-Collector-Current 1 A
• DC-Collector-Base-Gain-hfe-Min 4
• DC-Current-Gain-hFE-Max 32
