STWD100NWWY3F

STWD100NWWY3F Overview

Product belongs to the Automotive, AEC-Q100 series. Type: Watchdog Circuit Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Open Drain Supplier device package: SOT-23-5 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 4.3 ms minimum. This product's -. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 13 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V This product includes Watchdog This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support Chip Enable. This product does not have No capability.

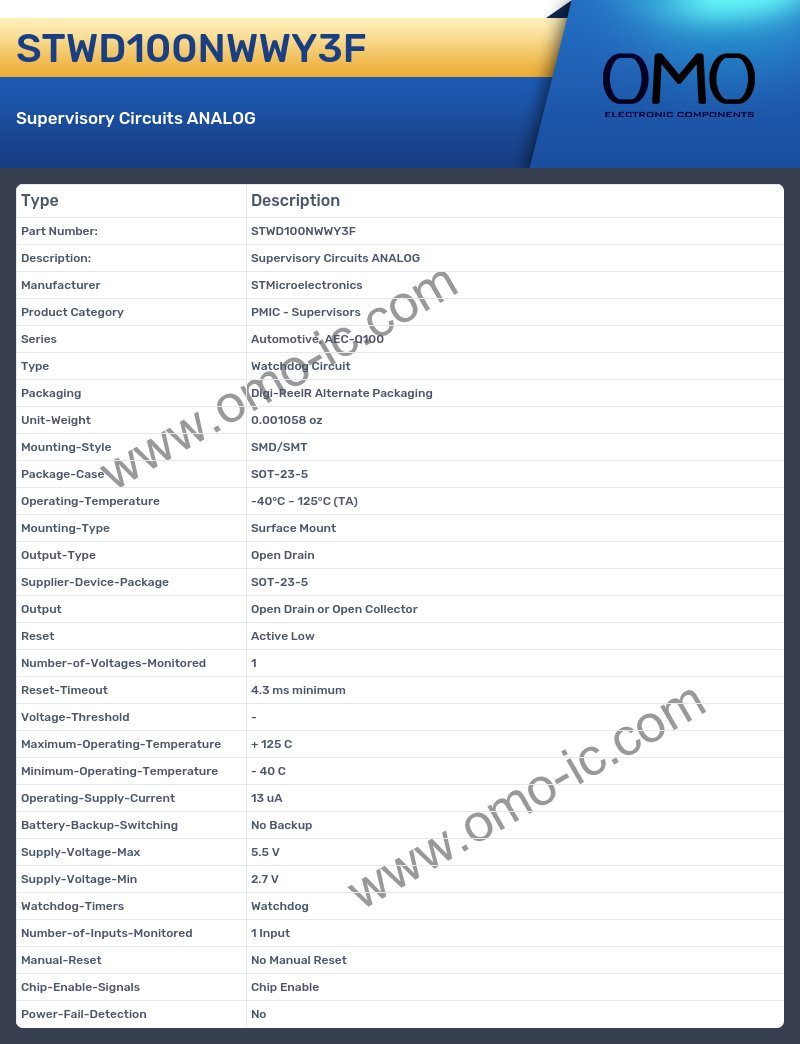

STWD100NWWY3F Image

STWD100NWWY3F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series Automotive, AEC-Q100
• Type Watchdog Circuit
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Supplier-Device-Package SOT-23-5
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 4.3 ms minimum
• Voltage-Threshold -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 13 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Watchdog-Timers Watchdog
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals Chip Enable
• Power-Fail-Detection No
