STS7PF30L

STS7PF30L Overview

Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002998 oz SMD/SMT Mounting-Style 8-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: 8-SO Configuration Single Quad Drain Triple Source This product uses an MOSFET P-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 P-Channel 30V This product has an 2600pF @ 25V value of 300pF @ 25V. This product's Standard. 7A (Tc) continuous drain-ID current at 25°C; This product has an 21 mOhm @ 3.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 23 ns of 16 ns. This product has a 54 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 7 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 30 V. The 21 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 65 ns This product has a 68 ns. This product operates in Enhancement channel mode for optimal performance.

STS7PF30L Image

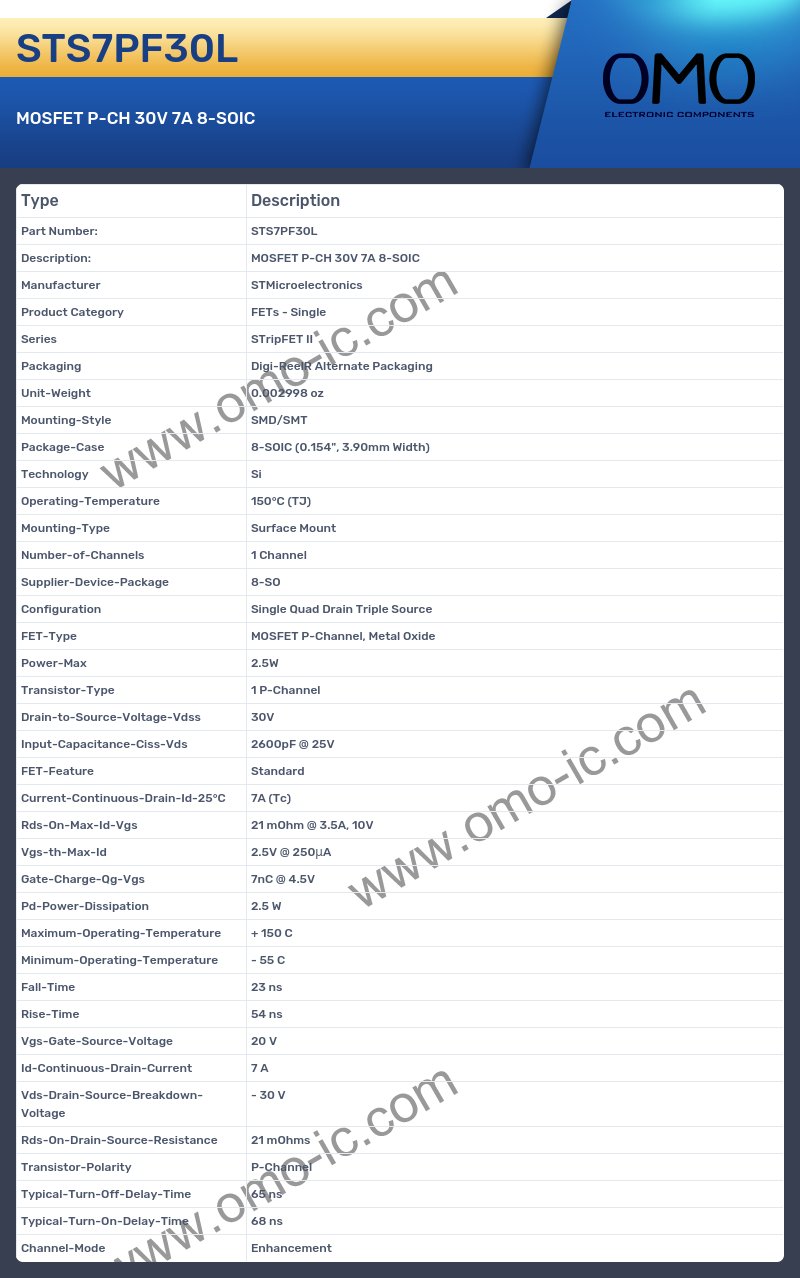

STS7PF30L Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series STripFET II
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002998 oz
• Mounting-Style SMD/SMT
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Technology Si
• Operating-Temperature 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SO
• Configuration Single Quad Drain Triple Source
• FET-Type MOSFET P-Channel, Metal Oxide
• Power-Max 2.5W
• Transistor-Type 1 P-Channel
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 2600pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 7A (Tc)
• Rds-On-Max-Id-Vgs 21 mOhm @ 3.5A, 10V
• Vgs-th-Max-Id 2.5V @ 250μA
• Gate-Charge-Qg-Vgs 7nC @ 4.5V
• Pd-Power-Dissipation 2.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 23 ns
• Rise-Time 54 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 7 A
• Vds-Drain-Source-Breakdown-Voltage - 30 V
• Rds-On-Drain-Source-Resistance 21 mOhms
• Transistor-Polarity P-Channel
• Typical-Turn-Off-Delay-Time 65 ns
• Typical-Turn-On-Delay-Time 68 ns
• Channel-Mode Enhancement
