STS5NF60L

STS5NF60L Overview

Product belongs to the STripFET series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002998 oz SMD/SMT Mounting-Style 8-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: 8-SO Configuration Single Quad Drain Triple Source This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 60V This product has an 1250pF @ 25V value of 300pF @ 25V. This product's Standard. 5A (Tc) continuous drain-ID current at 25°C; This product has an 55 mOhm @ 2.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 10 ns of 16 ns. This product has a 28 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. The 55 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 45 ns This product has a 13 ns. This product features a 25 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

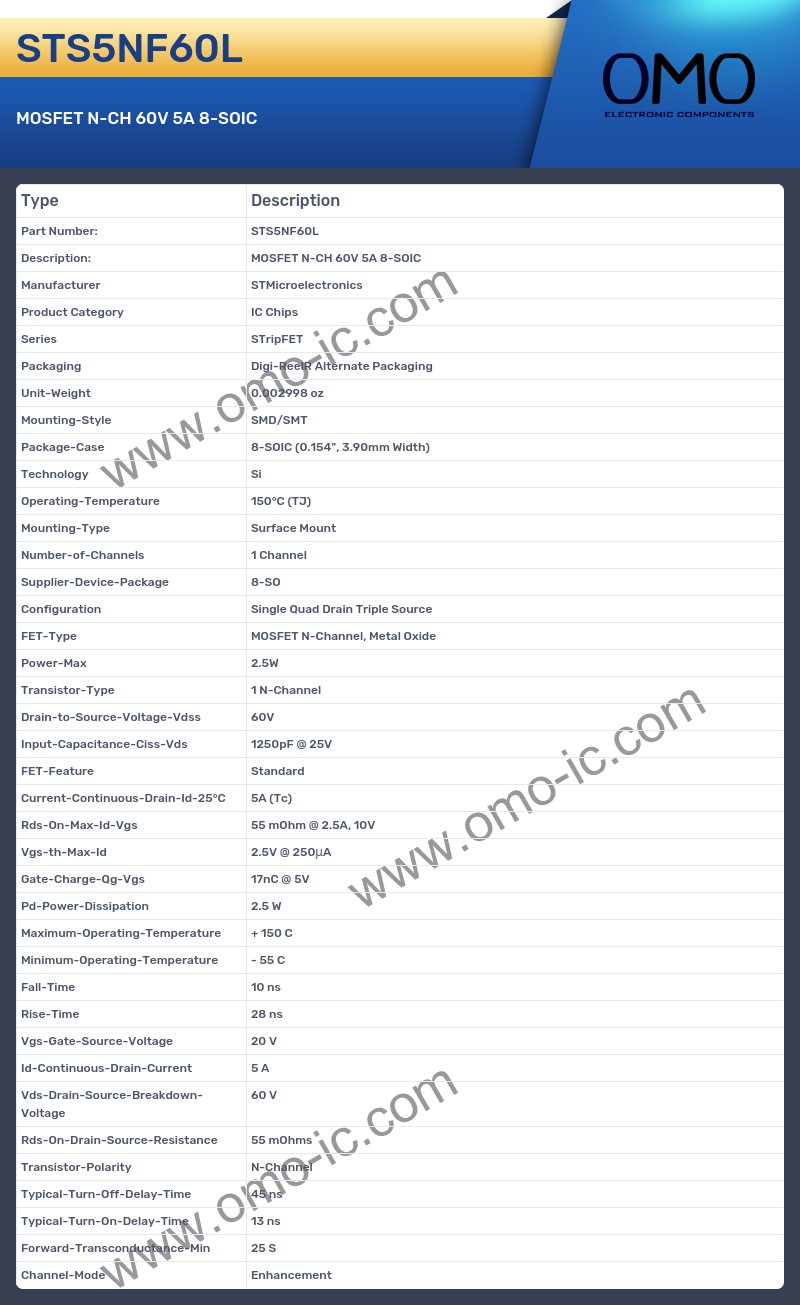

STS5NF60L Image

STS5NF60L Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series STripFET
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002998 oz
• Mounting-Style SMD/SMT
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Technology Si
• Operating-Temperature 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SO
• Configuration Single Quad Drain Triple Source
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 2.5W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 60V
• Input-Capacitance-Ciss-Vds 1250pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 5A (Tc)
• Rds-On-Max-Id-Vgs 55 mOhm @ 2.5A, 10V
• Vgs-th-Max-Id 2.5V @ 250μA
• Gate-Charge-Qg-Vgs 17nC @ 5V
• Pd-Power-Dissipation 2.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 10 ns
• Rise-Time 28 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 5 A
• Vds-Drain-Source-Breakdown-Voltage 60 V
• Rds-On-Drain-Source-Resistance 55 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 45 ns
• Typical-Turn-On-Delay-Time 13 ns
• Forward-Transconductance-Min 25 S
• Channel-Mode Enhancement
