STR1550

STR1550 Overview

Product belongs to the 500V to 1000V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style TO-236-3, SC-59, SOT-23-3 Surface Mount mounting type Supplier device package: SOT-23 Configuration Single Transistor type: NPN Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 500V DC current gain minimum (hFE) of Ic/Vce at 100 @ 50mA, 10V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 300mV @ 6mA, 50mA Power-off control: 500 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 500 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 0.3 V The 500 V voltage rating is 40 V. 9 V rating of 5 V Max DC collector current: 0.5 A This product is capable of handling a 0.5 A continuous collector current. Minimum hfe for DC collector-base gain is 10. 300 of 605.

STR1550 Image

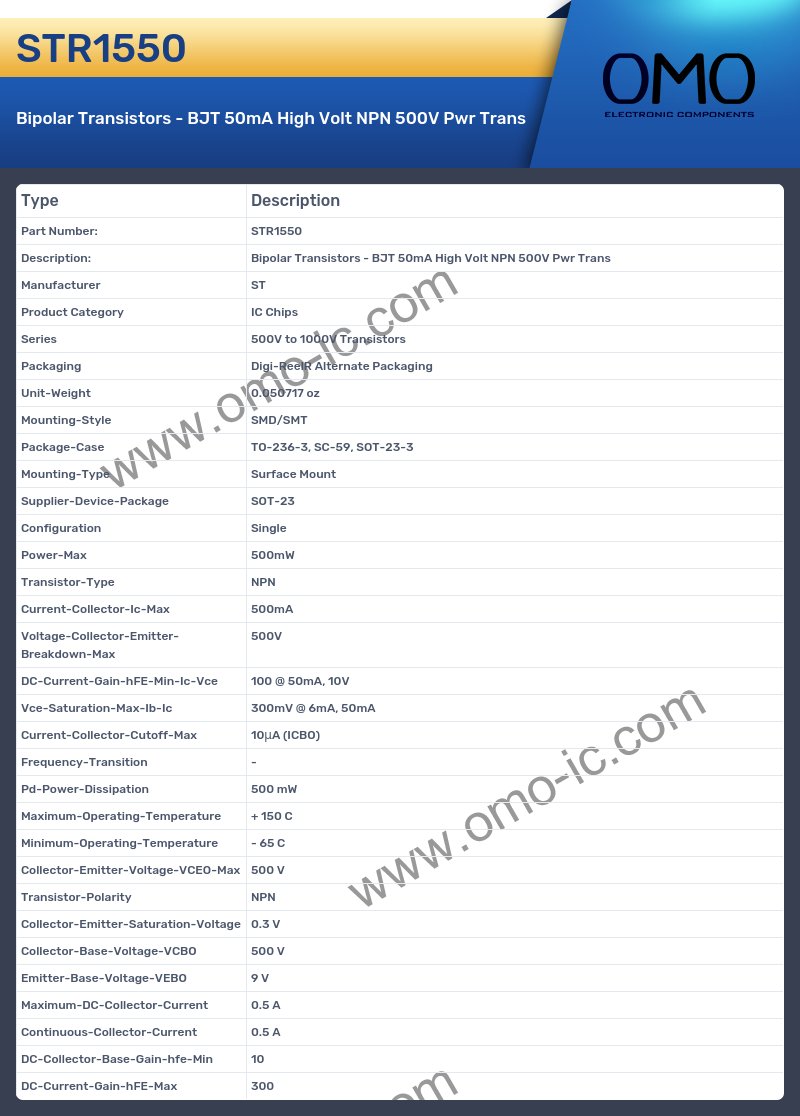

STR1550 Specifications

• Manufacturer ST
• Product Category IC Chips
• Series 500V to 1000V Transistors
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case TO-236-3, SC-59, SOT-23-3
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-23
• Configuration Single
• Power-Max 500mW
• Transistor-Type NPN
• Current-Collector-Ic-Max 500mA
• Voltage-Collector-Emitter-Breakdown-Max 500V
• DC-Current-Gain-hFE-Min-Ic-Vce 100 @ 50mA, 10V
• Vce-Saturation-Max-Ib-Ic 300mV @ 6mA, 50mA
• Current-Collector-Cutoff-Max 10μA (ICBO)
• Frequency-Transition -
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 500 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 0.3 V
• Collector-Base-Voltage-VCBO 500 V
• Emitter-Base-Voltage-VEBO 9 V
• Maximum-DC-Collector-Current 0.5 A
• Continuous-Collector-Current 0.5 A
• DC-Collector-Base-Gain-hfe-Min 10
• DC-Current-Gain-hFE-Max 300
