STPS30M100DJF-TR

STPS30M100DJF-TR Overview

Product belongs to the STPS30M100DJF series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Surface Mount mounting type Supplier device package: PowerFlat (5x6) Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 100μA @ 100V Current-Reverse-Leakage-Vr 1. Vf Max 960mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 100V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Vf-Forward-Voltage: 0.58 V Ir-Reverse-Current is 40 mA. If-Forward-Current is 30 A. VRRM (100 V) Reverse Voltage 200 A IFSM Forward Surge Current

STPS30M100DJF-TR Image

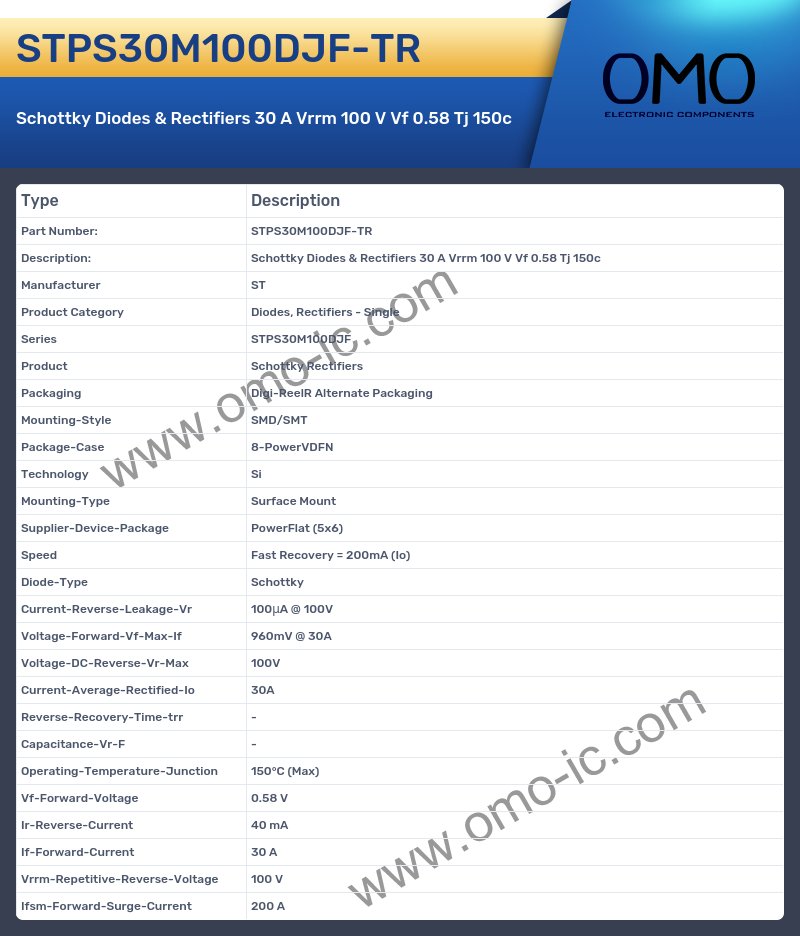

STPS30M100DJF-TR Specifications

• Manufacturer ST
• Product Category Diodes, Rectifiers - Single
• Series STPS30M100DJF
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 8-PowerVDFN
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package PowerFlat (5x6)
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 100μA @ 100V
• Voltage-Forward-Vf-Max-If 960mV @ 30A
• Voltage-DC-Reverse-Vr-Max 100V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Vf-Forward-Voltage 0.58 V
• Ir-Reverse-Current 40 mA
• If-Forward-Current 30 A
• Vrrm-Repetitive-Reverse-Voltage 100 V
• Ifsm-Forward-Surge-Current 200 A
