STPS2L60RL

STPS2L60RL Overview

Product belongs to the STPS2L60 series. This product is categorized as Schottky Rectifiers Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.010935 oz Through Hole Mounting-Style DO-204AL, DO-41, Axial Si is the technology used. Through Hole mounting type Supplier device package: DO-41 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 100μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 600mV @ 2A is the Voltage-Forward; Maximum DC reverse voltage 60V The 2A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.77 V at 4 A Ir-Reverse-Current is 100 uA. If-Forward-Current is 2 A. VRRM (60 V) Reverse Voltage 75 A IFSM Forward Surge Current

STPS2L60RL Image

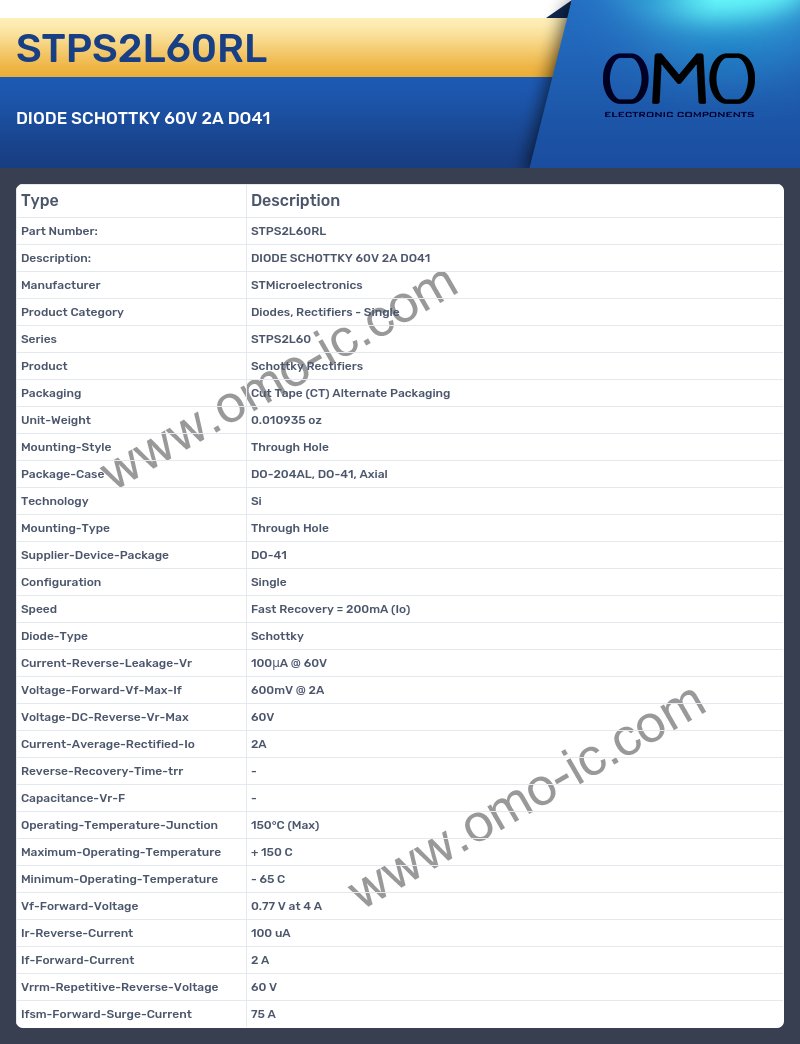

STPS2L60RL Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS2L60
• Product Schottky Rectifiers
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.010935 oz
• Mounting-Style Through Hole
• Package-Case DO-204AL, DO-41, Axial
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package DO-41
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 100μA @ 60V
• Voltage-Forward-Vf-Max-If 600mV @ 2A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 2A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.77 V at 4 A
• Ir-Reverse-Current 100 uA
• If-Forward-Current 2 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 75 A
