STPS20SM120SR Overview

Product belongs to the STPS20SM120S series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.073511 oz Through Hole Mounting-Style TO-262-3 Long Leads, I2Pak, TO-262AA Si is the technology used. Through Hole mounting type Supplier device package: I2PAK Configuration Dual Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 210μA @ 120V Current-Reverse-Leakage-Vr 1. Vf Max 890mV @ 20A is the Voltage-Forward; Maximum DC reverse voltage 120V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 150 C Minimum operating temperature: - Vf-Forward-Voltage: 890 mV VR Reverse Voltage of 120 V Ir-Reverse-Current is 210 uA. If-Forward-Current is 20 A. VRRM (120 V) Reverse Voltage 220 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

STPS20SM120SR Image

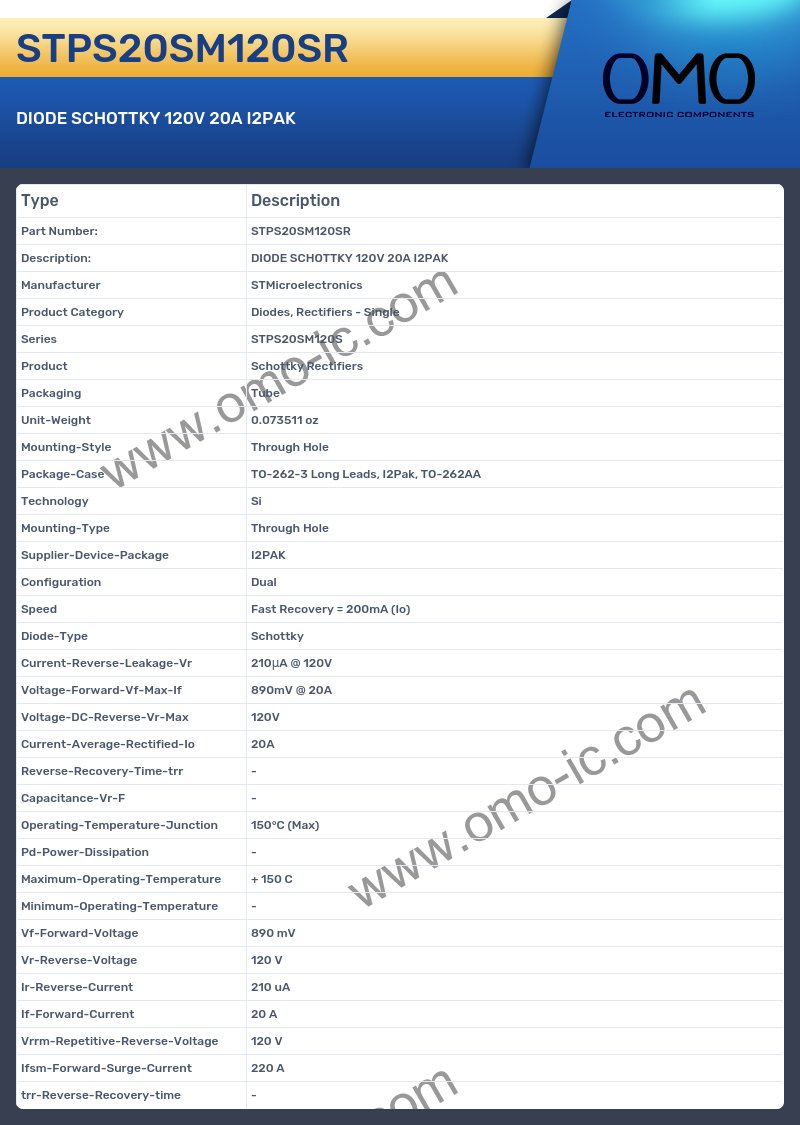

STPS20SM120SR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS20SM120S
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.073511 oz
• Mounting-Style Through Hole
• Package-Case TO-262-3 Long Leads, I2Pak, TO-262AA
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package I2PAK
• Configuration Dual
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 210μA @ 120V
• Voltage-Forward-Vf-Max-If 890mV @ 20A
• Voltage-DC-Reverse-Vr-Max 120V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature -
• Vf-Forward-Voltage 890 mV
• Vr-Reverse-Voltage 120 V
• Ir-Reverse-Current 210 uA
• If-Forward-Current 20 A
• Vrrm-Repetitive-Reverse-Voltage 120 V
• Ifsm-Forward-Surge-Current 220 A
• trr-Reverse-Recovery-time -
