STPS20M60SR

STPS20M60SR Overview

Product belongs to the STPS20M60S series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.073511 oz Through Hole Mounting-Style TO-262-3 Long Leads, I2Pak, TO-262AA Si is the technology used. Through Hole mounting type Supplier device package: I2PAK Configuration Dual Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 125μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 565mV @ 20A is the Voltage-Forward; Maximum DC reverse voltage 60V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 150 C Minimum operating temperature: - Vf-Forward-Voltage: 520 mV VR Reverse Voltage of 60 V Ir-Reverse-Current is 125 uA. If-Forward-Current is 20 A. VRRM (60 V) Reverse Voltage 600 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

STPS20M60SR Image

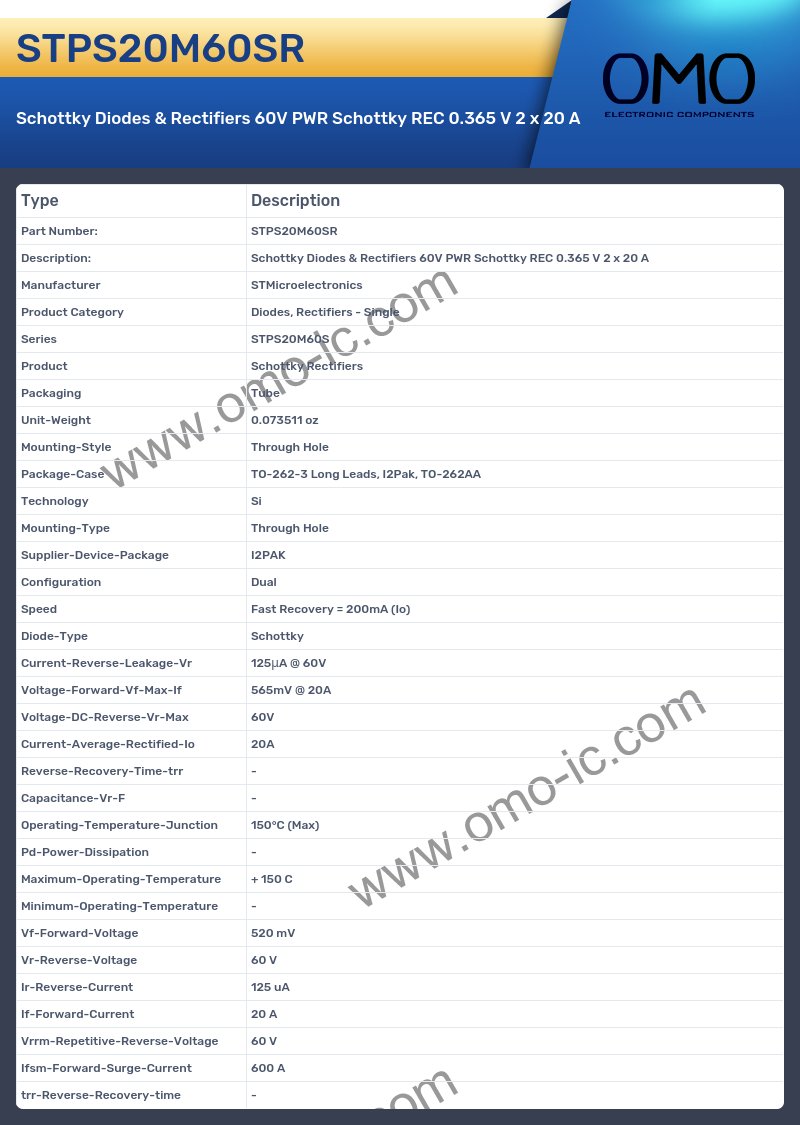

STPS20M60SR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS20M60S
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.073511 oz
• Mounting-Style Through Hole
• Package-Case TO-262-3 Long Leads, I2Pak, TO-262AA
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package I2PAK
• Configuration Dual
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 125μA @ 60V
• Voltage-Forward-Vf-Max-If 565mV @ 20A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature -
• Vf-Forward-Voltage 520 mV
• Vr-Reverse-Voltage 60 V
• Ir-Reverse-Current 125 uA
• If-Forward-Current 20 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 600 A
• trr-Reverse-Recovery-time -
