| Mfr. #: | STPS1H100U |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | DIODE SCHOTTKY 100V 1A SMB |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | STPS1H100U Scheda dati |
Product belongs to the STPS1H100 series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006349 oz SMD/SMT Mounting-Style DO-214AA, SMB Si is the technology used. Surface Mount mounting type Supplier device package: SMB Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 4μA @ 100V Current-Reverse-Leakage-Vr 1. Vf Max 770mV @ 1A is the Voltage-Forward; Maximum DC reverse voltage 100V The 1A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.86 V at 2 A Ir-Reverse-Current is 4 uA. If-Forward-Current is 1 A. VRRM (100 V) Reverse Voltage 50 A IFSM Forward Surge Current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

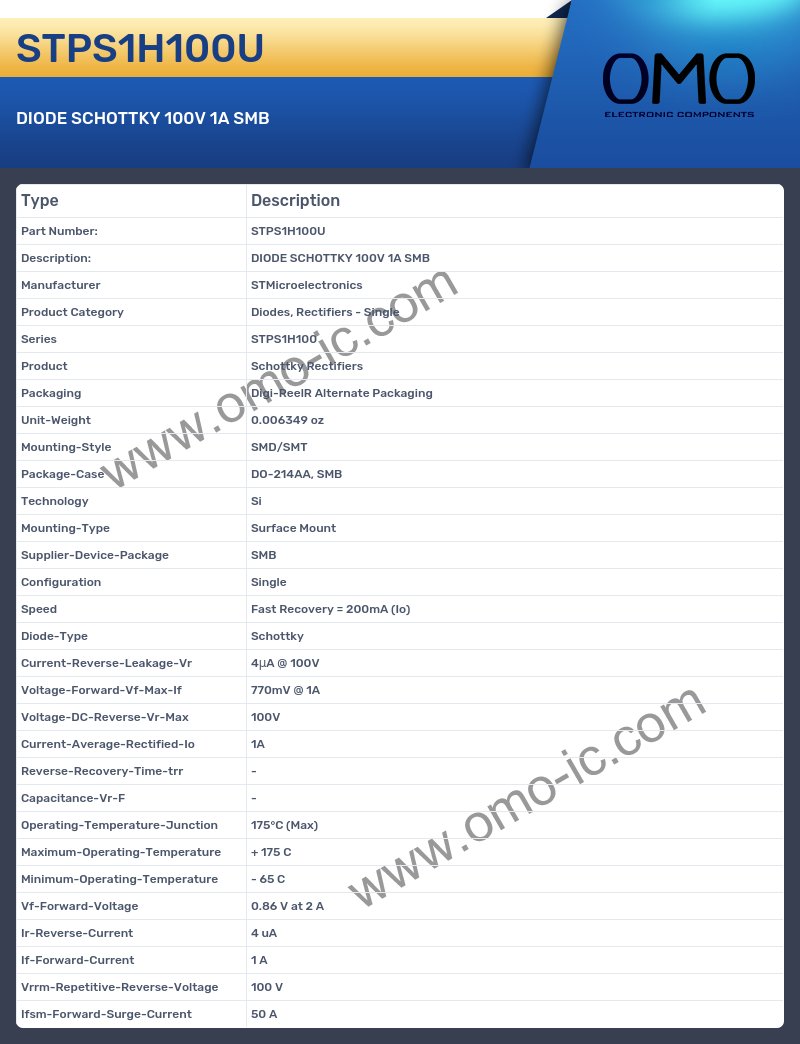

STPS1H100U Specifications
