STPS0540Z Overview

Product belongs to the STPS0540Z series. This product is categorized as Schottky Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOD-123 Si is the technology used. Surface Mount mounting type Supplier device package: SOD-123 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 40μA @ 40V Current-Reverse-Leakage-Vr 1. Vf Max 500mV @ 500mA is the Voltage-Forward; Maximum DC reverse voltage 40V The 500mA Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.55 V at 1 A Ir-Reverse-Current is 40 uA. If-Forward-Current is 0.5 A. VRRM (40 V) Reverse Voltage 5.5 A IFSM Forward Surge Current

STPS0540Z Image

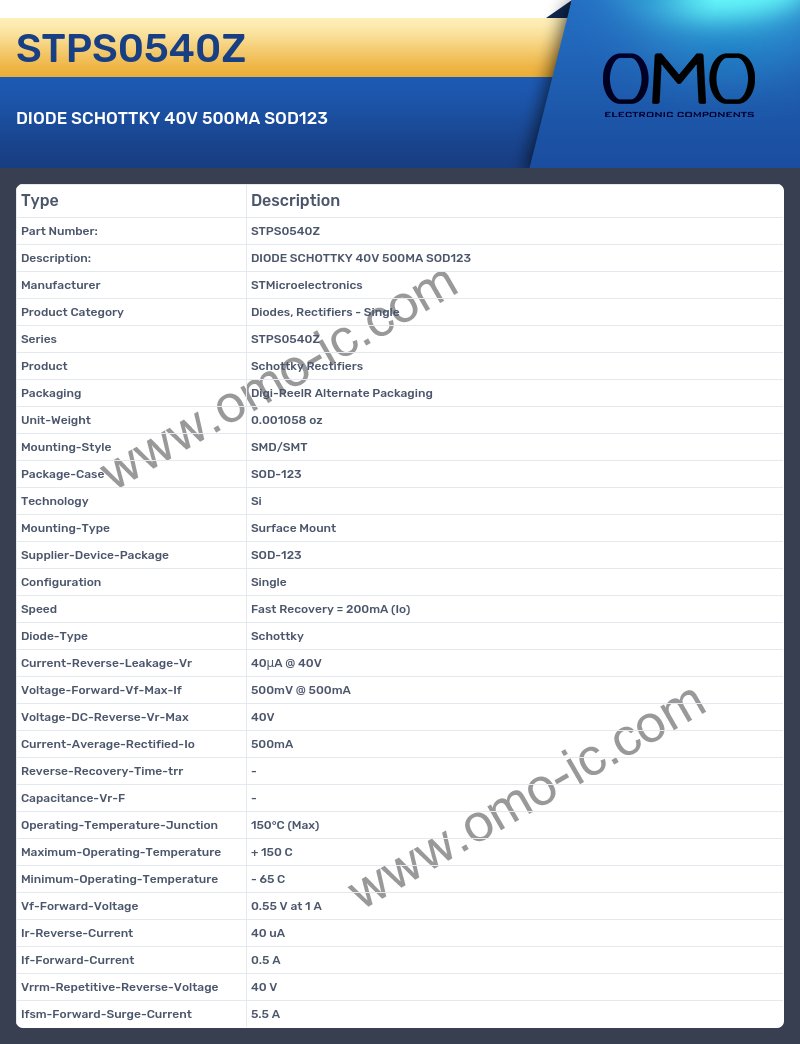

STPS0540Z Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS0540Z
• Product Schottky Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOD-123
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package SOD-123
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 40μA @ 40V
• Voltage-Forward-Vf-Max-If 500mV @ 500mA
• Voltage-DC-Reverse-Vr-Max 40V
• Current-Average-Rectified-Io 500mA
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.55 V at 1 A
• Ir-Reverse-Current 40 uA
• If-Forward-Current 0.5 A
• Vrrm-Repetitive-Reverse-Voltage 40 V
• Ifsm-Forward-Surge-Current 5.5 A
