STP170N8F7

STP170N8F7 Overview

Product belongs to the N-channel STripFET series. Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Power-off control: 250 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 37 ns of 16 ns. This product has a 53 ns of 16 ns. This product's +/- 20 V. The ID of continuous drain current is 120 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 80 V. This product has a 2.5 V to 4.5 V Vgs-th gate-source threshold voltage for efficient power management. The 3.9 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 79 ns This product has a 38 ns. Qg-Gate-Charge is 120 nC. This product operates in Enhancement channel mode for optimal performance.

STP170N8F7 Image

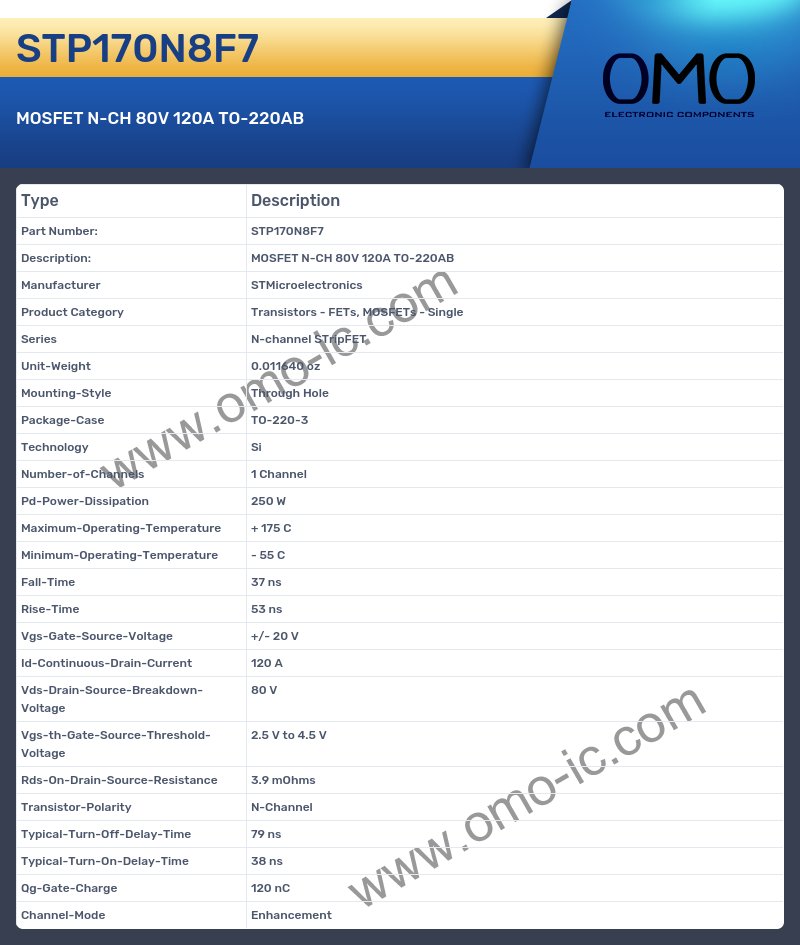

STP170N8F7 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel STripFET
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Pd-Power-Dissipation 250 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 37 ns
• Rise-Time 53 ns
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 120 A
• Vds-Drain-Source-Breakdown-Voltage 80 V
• Vgs-th-Gate-Source-Threshold-Voltage 2.5 V to 4.5 V
• Rds-On-Drain-Source-Resistance 3.9 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 79 ns
• Typical-Turn-On-Delay-Time 38 ns
• Qg-Gate-Charge 120 nC
• Channel-Mode Enhancement
