STP16CPS05XTTR

STP16CPS05XTTR Overview

Product belongs to the STP16CPS05 series. Type: Linear Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006081 oz SMD/SMT Mounting-Style HTSSOP-24 This product's 30MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile - applications for maximum usability Supplier device package: 24-TSSOP-EP Number-of-Outputs: 16 Current-Output-Channel is 100mA This product has Yes. Topology: Shift Register feedback The maximum voltage supply is 5.5V. The minimum 3V required for voltage supply. Output voltage: 20V Dimming control is done through - communication. This product comes equipped with 1 LEDs. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3 V to 5.5 V supply voltage for reliable performance. Maximum supply current: 11.7 mA High-Level-Output-Current of 1 mA - 1 mA low-level output current This product features 16 display for enhanced visibility.

STP16CPS05XTTR Image

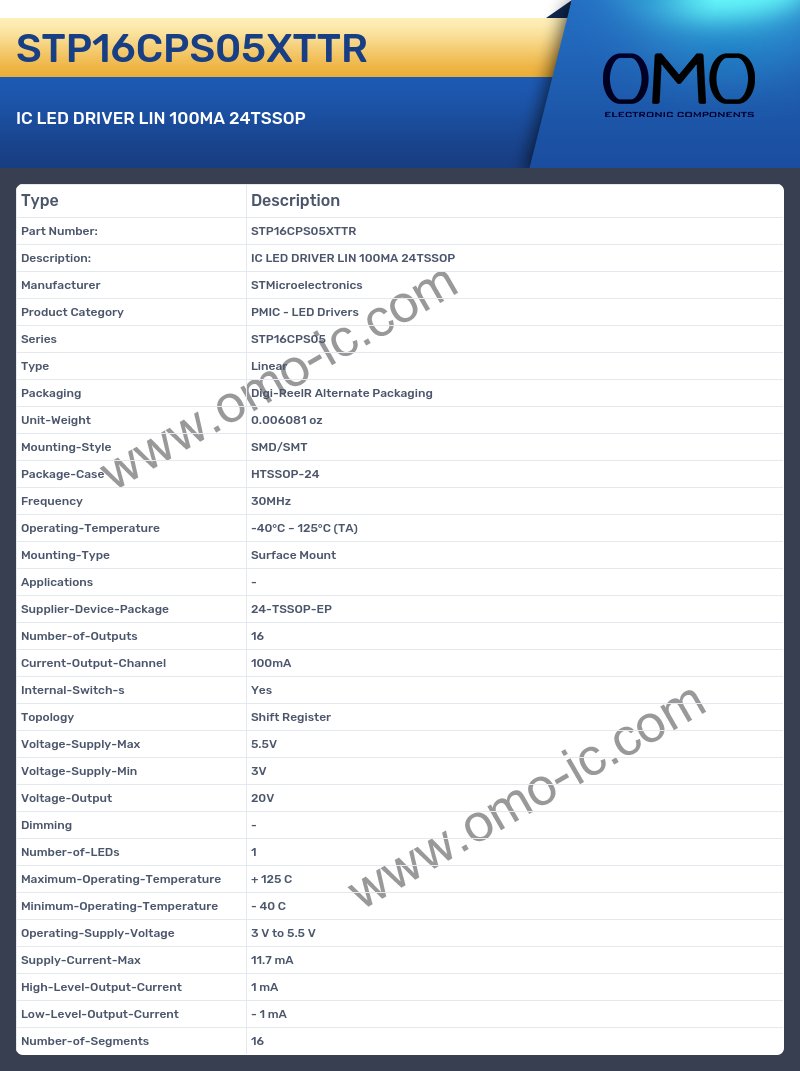

STP16CPS05XTTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - LED Drivers
• Series STP16CPS05
• Type Linear
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006081 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-24
• Frequency 30MHz
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications -
• Supplier-Device-Package 24-TSSOP-EP
• Number-of-Outputs 16
• Current-Output-Channel 100mA
• Internal-Switch-s Yes
• Topology Shift Register
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 3V
• Voltage-Output 20V
• Dimming -
• Number-of-LEDs 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 5.5 V
• Supply-Current-Max 11.7 mA
• High-Level-Output-Current 1 mA
• Low-Level-Output-Current - 1 mA
• Number-of-Segments 16
