STP10NK80ZFP

STP10NK80ZFP Overview

Product belongs to the SuperMESH series. Tube is the packaging method for this product Weight of 0.071959 oz Through Hole Mounting-Style TO-220-3 Full Pack Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-220FP Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 800V This product has an 2180pF @ 25V value of 300pF @ 25V. This product's Standard. 9A (Tc) continuous drain-ID current at 25°C; This product has an 900 mOhm @ 4.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 40 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 17 ns of 16 ns. This product has a 20 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 9 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 800 V. The 900 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 65 ns This product has a 30 ns. Qg-Gate-Charge is 72 nC. This product features a 9.6 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

STP10NK80ZFP Image

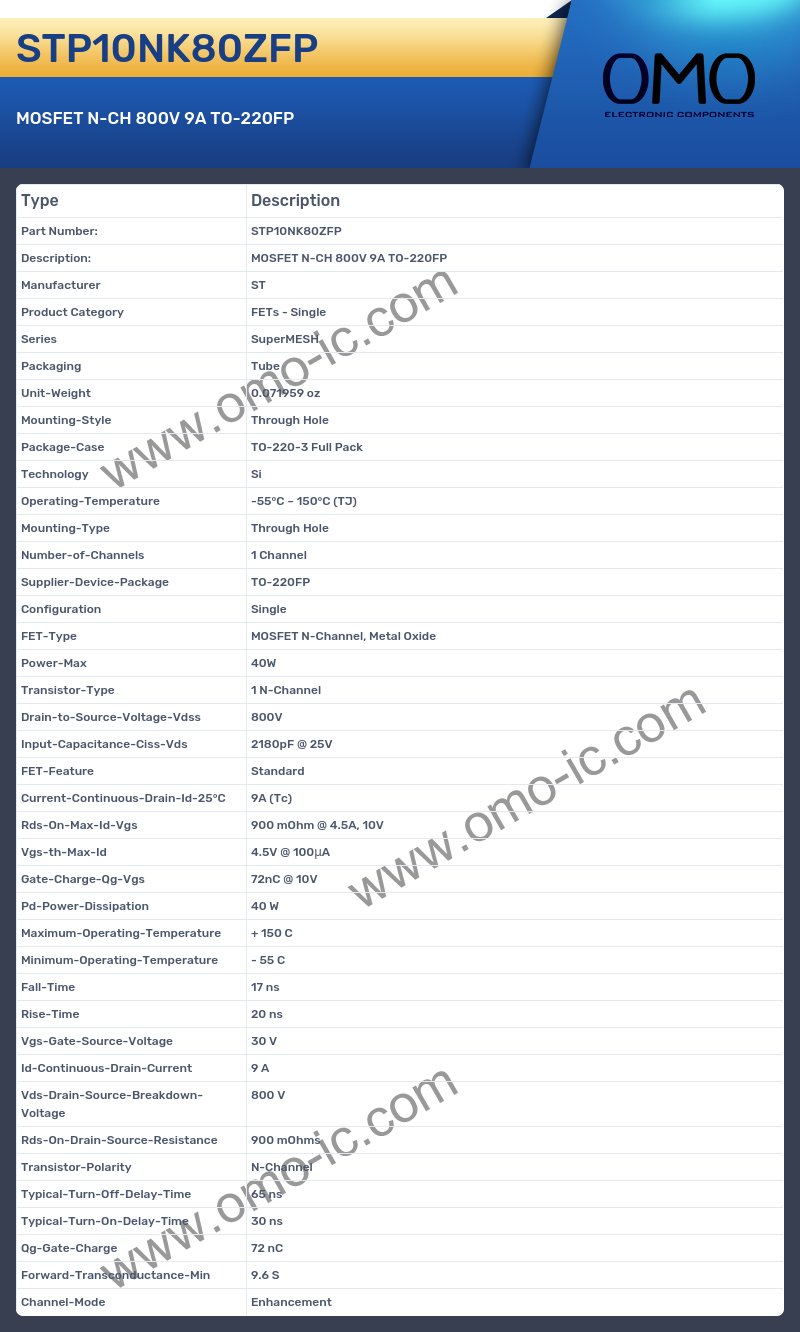

STP10NK80ZFP Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series SuperMESH
• Packaging Tube
• Unit-Weight 0.071959 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3 Full Pack
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-220FP
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 40W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 800V
• Input-Capacitance-Ciss-Vds 2180pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 9A (Tc)
• Rds-On-Max-Id-Vgs 900 mOhm @ 4.5A, 10V
• Vgs-th-Max-Id 4.5V @ 100μA
• Gate-Charge-Qg-Vgs 72nC @ 10V
• Pd-Power-Dissipation 40 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 17 ns
• Rise-Time 20 ns
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 9 A
• Vds-Drain-Source-Breakdown-Voltage 800 V
• Rds-On-Drain-Source-Resistance 900 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 65 ns
• Typical-Turn-On-Delay-Time 30 ns
• Qg-Gate-Charge 72 nC
• Forward-Transconductance-Min 9.6 S
• Channel-Mode Enhancement
