| Mfr. #: | STP100NF04 |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | Darlington Transistors MOSFET N-Ch 40 Volt 120 Amp |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | STP100NF04 Scheda dati |
Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.079014 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 300 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 50 ns of 16 ns. This product has a 220 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 120 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. The 4.6 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 80 ns This product has a 35 ns. This product features a 150 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

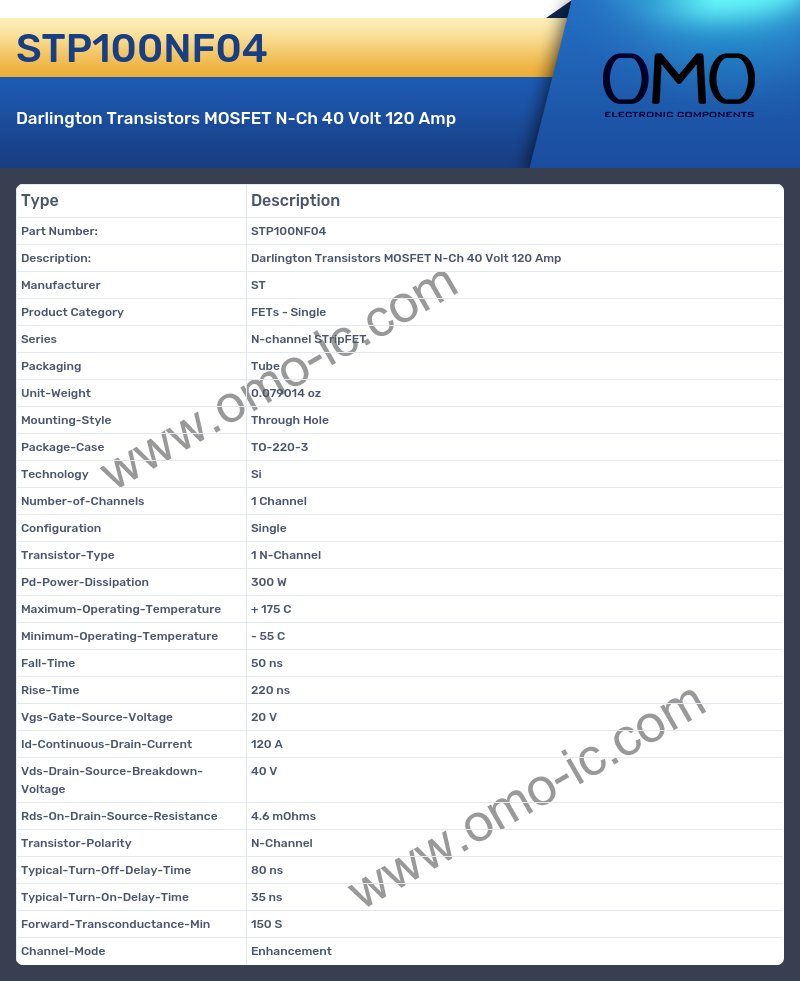

STP100NF04 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed N-channel STripFET
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.079014 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 N-Channel
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 300 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 50 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 220 ns
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is 20 V.
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 120 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 40 V
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 4.6 mOhms.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed N-Channel
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 80 ns.
A: At what frequency does the Typical-Turn-On-Delay-Time?
Q: The product Typical-Turn-On-Delay-Time is 35 ns.
A: Is the cutoff frequency of the product Forward-Transconductance-Min?
Q: Yes, the product's Forward-Transconductance-Min is indeed 150 S
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
