| Mfr. #: | STN9360 |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | Bipolar Transistors - BJT Hi Vltg fast-switch PNP pwr transisto |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | STN9360 Scheda dati |
Product belongs to the 500V to 1000V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Surface Mount mounting type Supplier device package: SOT-223 Transistor type: PNP Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 600V DC current gain minimum (hFE) of Ic/Vce at 120 @ 20mA, 5V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 10mA, 100mA Power-off control: 1.6 W Maximum operating temperature of + 150 C Rated VCEO up to - 600 V The transistor polarity is PNP. Saturation voltage between collector and emitter is - 0.5 V - 7 V rating of 5 V Max DC collector current: - 0.5 A This product is capable of handling a - 0.5 V continuous collector current. Minimum hfe for DC collector-base gain is 200. 200 of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

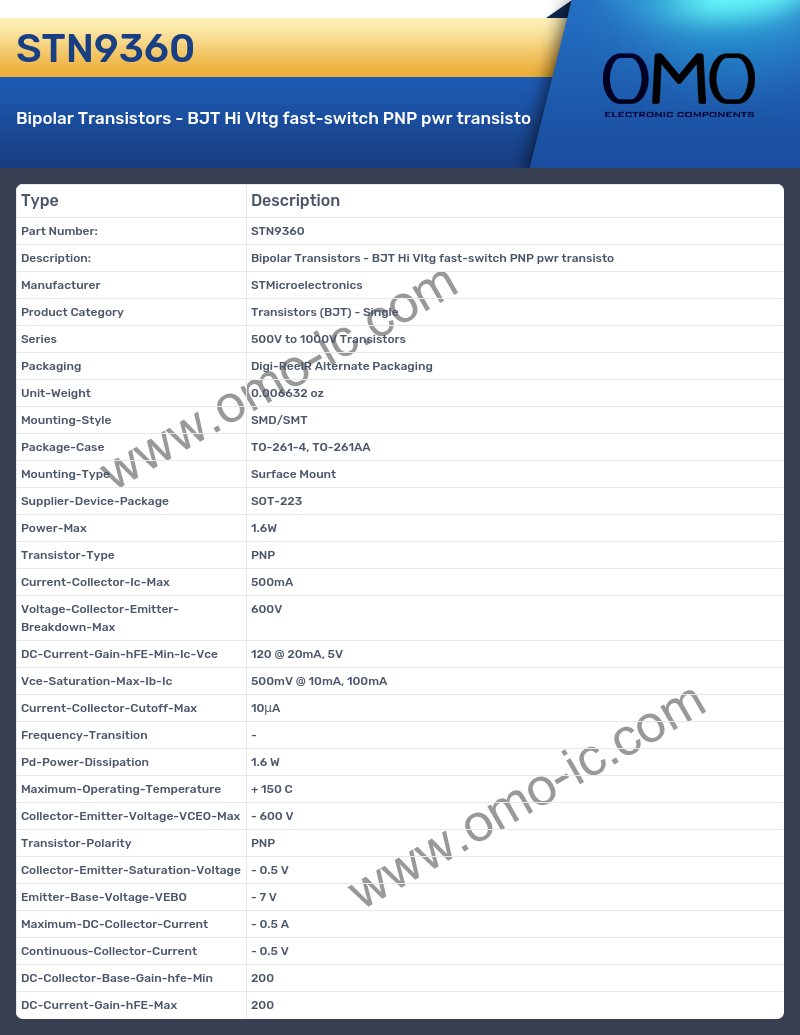

STN9360 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 500V to 1000V Transistors
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.006632 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-261-4, TO-261AA.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is SOT-223.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is PNP.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 500mA
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 120 @ 20mA, 5V.
A: At what frequency does the Vce-Saturation-Max-Ib-Ic?
Q: The product Vce-Saturation-Max-Ib-Ic is 500mV @ 10mA, 100mA.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 1.6 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is - 600 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed PNP
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is - 0.5 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is - 7 V.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is - 0.5 A.
A: Is the cutoff frequency of the product Continuous-Collector-Current?
Q: Yes, the product's Continuous-Collector-Current is indeed - 0.5 V
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 200
A: What is the DC-Current-Gain-hFE-Max of the product?
Q: The DC-Current-Gain-hFE-Max of the product is 200.
