STLED25JR

STLED25JR Overview

Product belongs to the STLED25 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product 12-UFBGA, FCBGA This product's 2.5MHz range is 0Hz to 2.2GHz. Operational temperature range: -30°C ~ 85°C (TA) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 12-FlipChip Number-of-Outputs: 5 Current-Output-Channel is 125mA This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 5.5V. The minimum 2.3V required for voltage supply. Output voltage: 8.8V Dimming control is done through PWM communication.

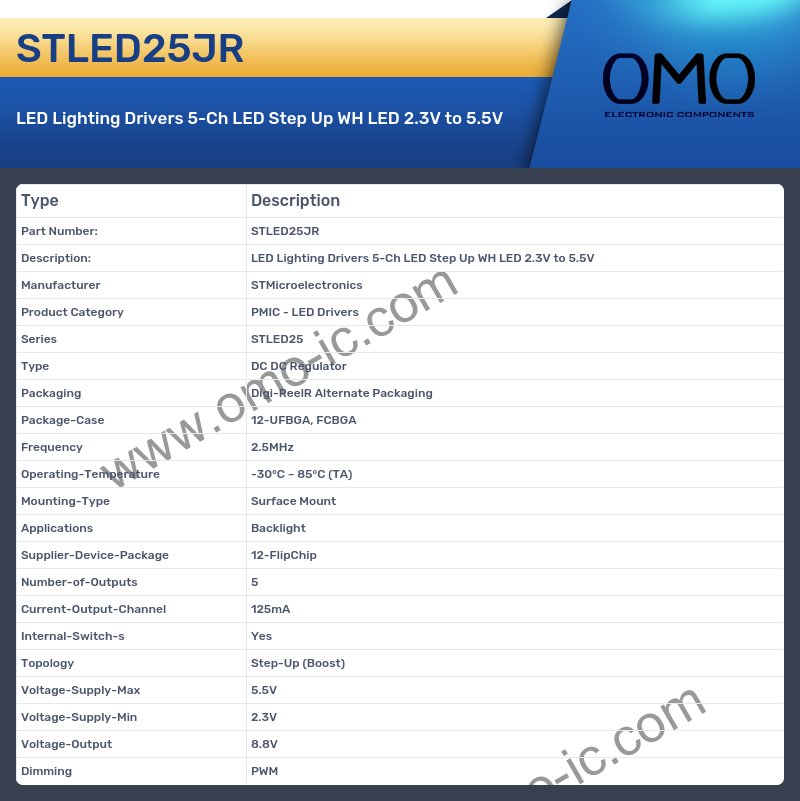

STLED25JR Image

STLED25JR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - LED Drivers
• Series STLED25
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 12-UFBGA, FCBGA
• Frequency 2.5MHz
• Operating-Temperature -30°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 12-FlipChip
• Number-of-Outputs 5
• Current-Output-Channel 125mA
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 2.3V
• Voltage-Output 8.8V
• Dimming PWM
