STL15N60M2-EP

STL15N60M2-EP Overview

Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Power-off control: 55 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 10 ns of 16 ns. This product's +/- 25 V. The ID of continuous drain current is 7 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 2 V Vgs-th gate-source threshold voltage for efficient power management. The 418 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 40 ns This product has a 11 ns. Qg-Gate-Charge is 17 nC. This product operates in Enhancement channel mode for optimal performance.

STL15N60M2-EP Image

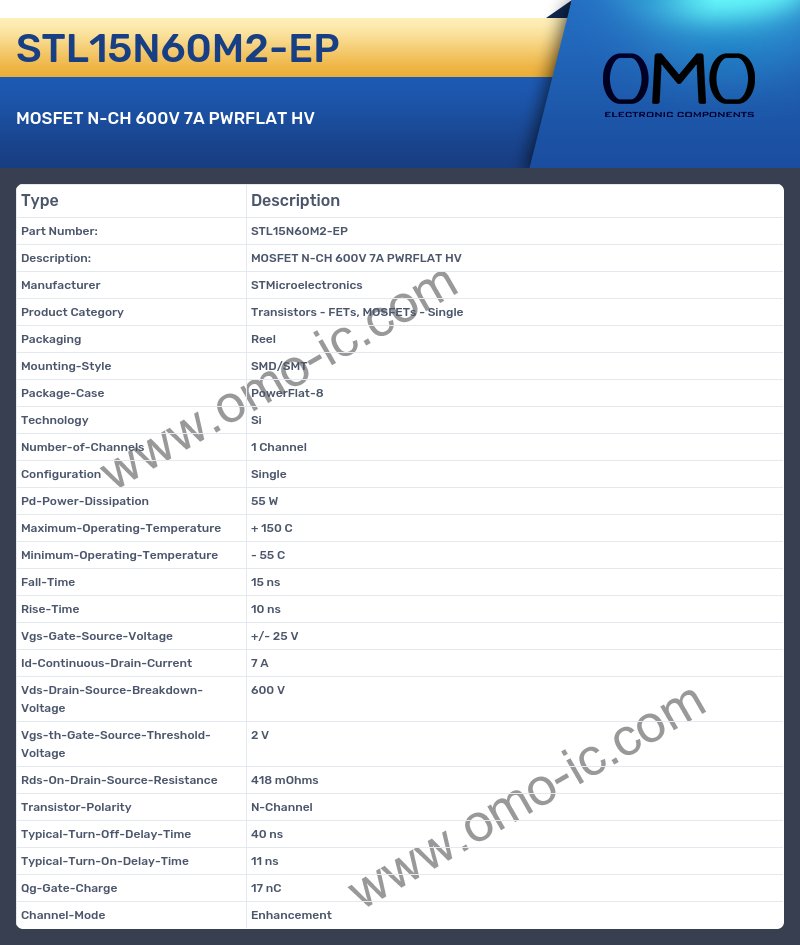

STL15N60M2-EP Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Pd-Power-Dissipation 55 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 15 ns
• Rise-Time 10 ns
• Vgs-Gate-Source-Voltage +/- 25 V
• Id-Continuous-Drain-Current 7 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Vgs-th-Gate-Source-Threshold-Voltage 2 V
• Rds-On-Drain-Source-Resistance 418 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 40 ns
• Typical-Turn-On-Delay-Time 11 ns
• Qg-Gate-Charge 17 nC
• Channel-Mode Enhancement
