| Mfr. #: | STGW30NC60WD |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | IGBT 600V 60A 200W TO247 |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | STGW30NC60WD Scheda dati |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 150A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 20A. 29.5ns/118ns Td-on-off at 25°C; Operating temperature: 390V, 20A, 10 Ohm, 15V Power-off control: 200 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.1 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 60 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

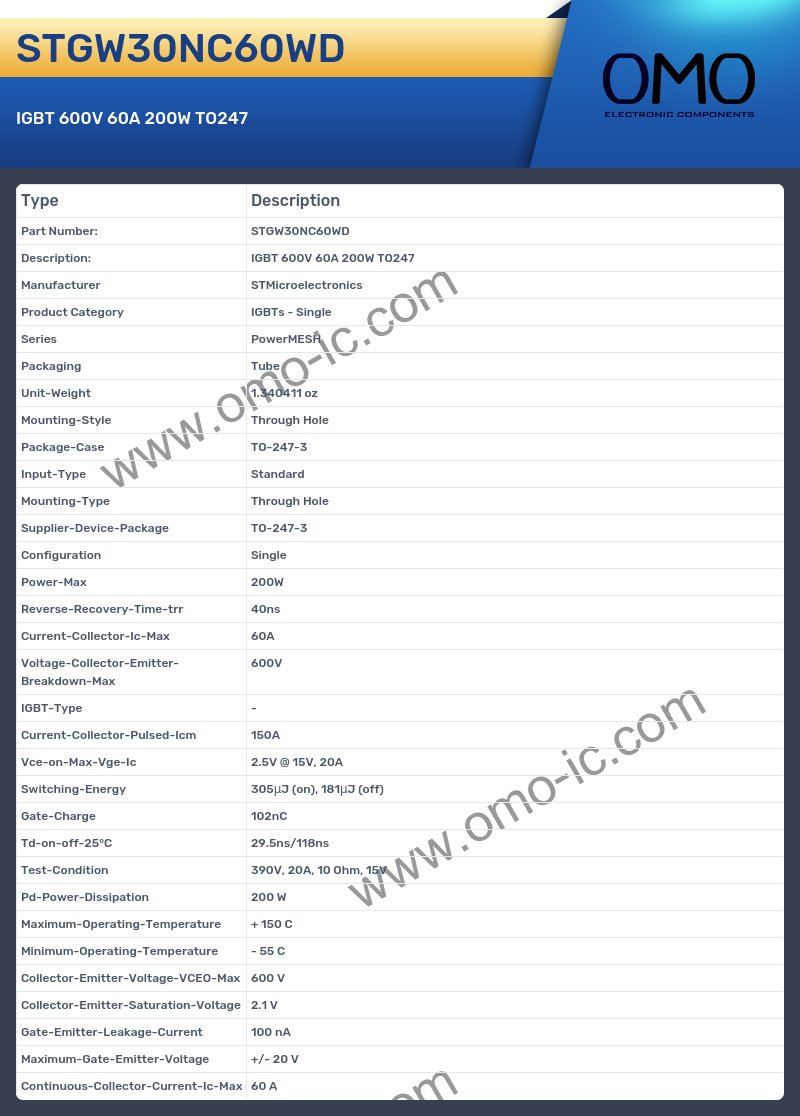

STGW30NC60WD Specifications
A: At what frequency does the Series?
Q: The product Series is PowerMESH.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 1.340411 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-247-3.
A: At what frequency does the Input-Type?
Q: The product Input-Type is Standard.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-247-3
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 60A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 150A.
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.5V @ 15V, 20A
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 29.5ns/118ns.
A: Is the cutoff frequency of the product Test-Condition?
Q: Yes, the product's Test-Condition is indeed 390V, 20A, 10 Ohm, 15V
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 200 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: Is the cutoff frequency of the product Collector-Emitter-Saturation-Voltage?
Q: Yes, the product's Collector-Emitter-Saturation-Voltage is indeed 2.1 V
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 20 V
A: At what frequency does the Continuous-Collector-Current-Ic-Max?
Q: The product Continuous-Collector-Current-Ic-Max is 60 A.
