| Mfr. #: | STGW30NC120HD |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | IGBT 1200V 60A 220W TO247 |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | STGW30NC120HD Scheda dati |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 1200V The Current-Collector-Pulsed-Icm is rated at -. The Vce-on-Max-Vge-Ic is rated at 2.75V @ 15V, 20A. 29ns/275ns Td-on-off at 25°C; Operating temperature: 960V, 20A, 10 Ohm, 15V Power-off control: 220 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 1200 V Saturation voltage between collector and emitter is 2.75 V Maximum-Gate-Emitter-Voltage: +/- 25 V Maximal 60 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

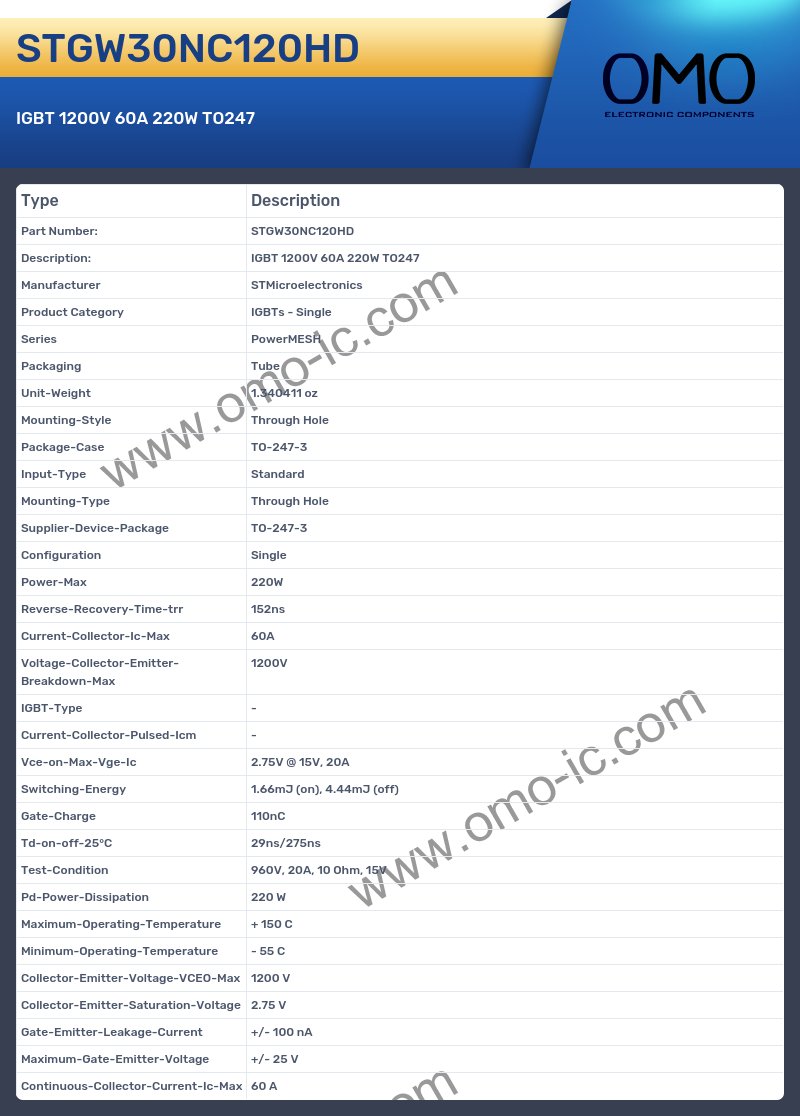

STGW30NC120HD Specifications
