| Mfr. #: | STGW28IH125DF |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | IGBT Transistors 1250V 25A trench gate field-stop IGBT |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | STGW28IH125DF Scheda dati |
Product belongs to the 900-1300V IGBTs series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 1250V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 25A. -/128ns Td-on-off at 25°C; Operating temperature: 600V, 25A, 10 Ohm, 15V Power-off control: 375 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 1.25 kV Saturation voltage between collector and emitter is 2.65 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V Maximal 30 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

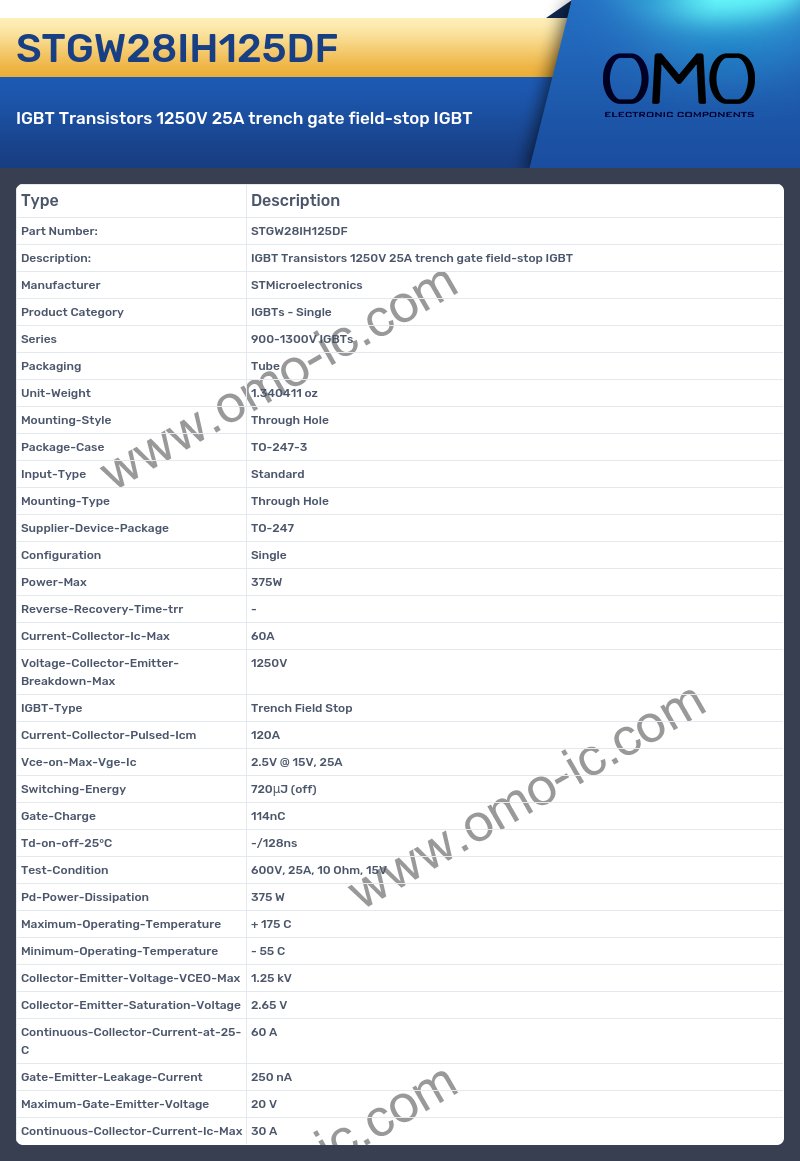

STGW28IH125DF Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 900-1300V IGBTs
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 1.340411 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-247-3.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-247.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 60A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 1250V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 120A
A: At what frequency does the Vce-on-Max-Vge-Ic?
Q: The product Vce-on-Max-Vge-Ic is 2.5V @ 15V, 25A.
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is -/128ns.
A: Is the cutoff frequency of the product Test-Condition?
Q: Yes, the product's Test-Condition is indeed 600V, 25A, 10 Ohm, 15V
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 375 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 1.25 kV
A: Is the cutoff frequency of the product Collector-Emitter-Saturation-Voltage?
Q: Yes, the product's Collector-Emitter-Saturation-Voltage is indeed 2.65 V
A: What is the Continuous-Collector-Current-at-25-C of the product?
Q: The Continuous-Collector-Current-at-25-C of the product is 60 A.
A: At what frequency does the Maximum-Gate-Emitter-Voltage?
Q: The product Maximum-Gate-Emitter-Voltage is 20 V.
A: At what frequency does the Continuous-Collector-Current-Ic-Max?
Q: The product Continuous-Collector-Current-Ic-Max is 30 A.
