STGW20NC60VD

STGW20NC60VD Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247-3 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 150A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 20A. 31ns/100ns Td-on-off at 25°C; Operating temperature: 390V, 20A, 3.3 Ohm, 15V Power-off control: 200 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 60 A Collector Current of Continuity;

STGW20NC60VD Image

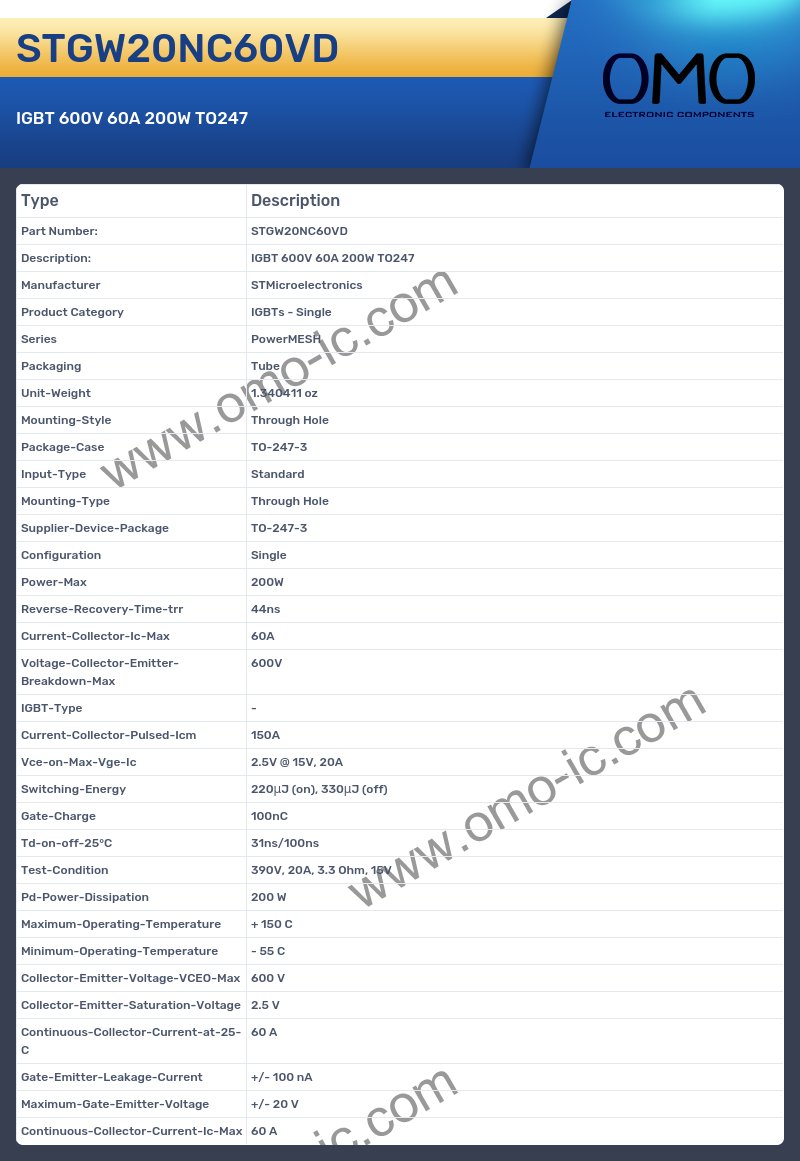

STGW20NC60VD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247-3
• Configuration Single
• Power-Max 200W
• Reverse-Recovery-Time-trr 44ns
• Current-Collector-Ic-Max 60A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 150A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 20A
• Switching-Energy 220μJ (on), 330μJ (off)
• Gate-Charge 100nC
• Td-on-off-25°C 31ns/100ns
• Test-Condition 390V, 20A, 3.3 Ohm, 15V
• Pd-Power-Dissipation 200 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 2.5 V
• Continuous-Collector-Current-at-25-C 60 A
• Gate-Emitter-Leakage-Current +/- 100 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 60 A
