STGW15M120DF3

STGW15M120DF3 Overview

Product belongs to the 900-1300V IGBTs series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Configuration Single Maximum current collector Ic is 30A . Maximum collector-emitter breakdown voltage of 1200V The Current-Collector-Pulsed-Icm is rated at 60A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 15A. 26ns/122ns Td-on-off at 25°C; Operating temperature: 600V, 15A, 22 Ohm, 15V Power-off control: 283 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 1200 V Saturation voltage between collector and emitter is 1.85 V 30 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V

STGW15M120DF3 Image

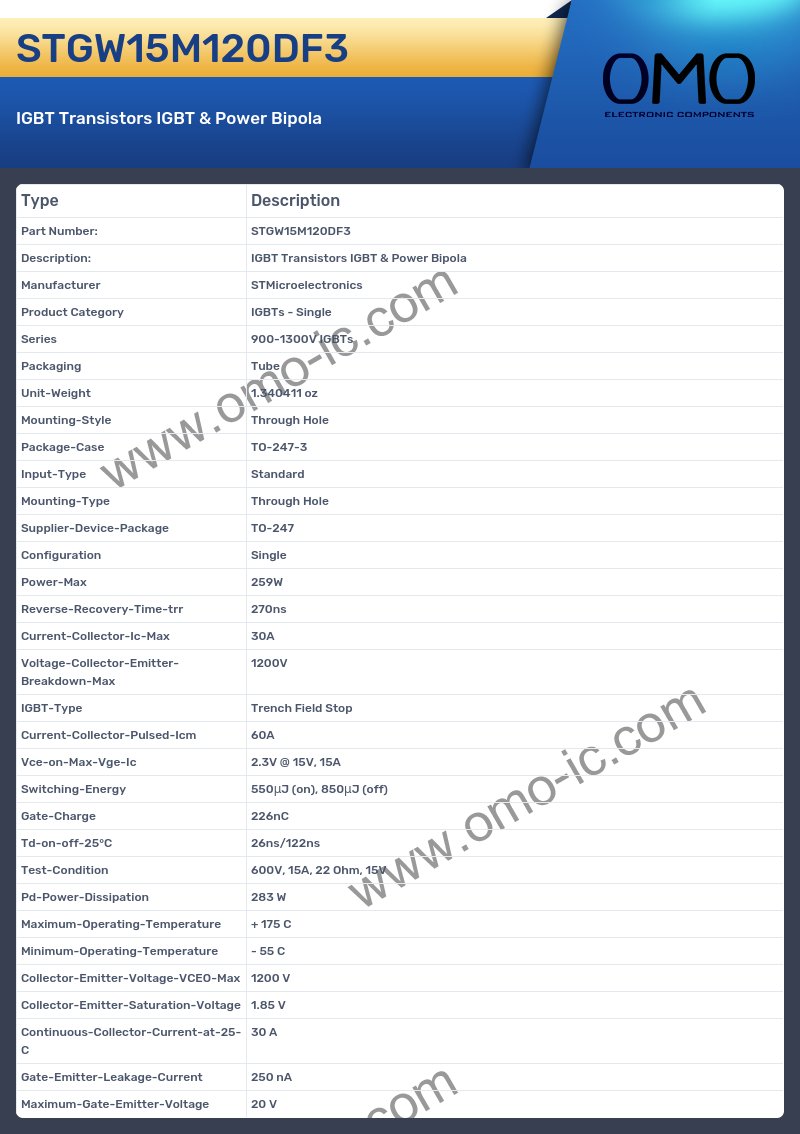

STGW15M120DF3 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 900-1300V IGBTs
• Packaging Tube
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247
• Configuration Single
• Power-Max 259W
• Reverse-Recovery-Time-trr 270ns
• Current-Collector-Ic-Max 30A
• Voltage-Collector-Emitter-Breakdown-Max 1200V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 60A
• Vce-on-Max-Vge-Ic 2.3V @ 15V, 15A
• Switching-Energy 550μJ (on), 850μJ (off)
• Gate-Charge 226nC
• Td-on-off-25°C 26ns/122ns
• Test-Condition 600V, 15A, 22 Ohm, 15V
• Pd-Power-Dissipation 283 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 1200 V
• Collector-Emitter-Saturation-Voltage 1.85 V
• Continuous-Collector-Current-at-25-C 30 A
• Gate-Emitter-Leakage-Current 250 nA
• Maximum-Gate-Emitter-Voltage 20 V
