| Mfr. #: | STGP20NC60V |
|---|---|
| Produttore: | STMicroelectronics |
| Descrizione: | IGBT Transistors N-Ch 600 Volt 30 Amp |
| Ciclo vitale: | Nuovo da questo produttore. |
| Scheda dati: | STGP20NC60V Scheda dati |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 100A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 20A. 31ns/100ns Td-on-off at 25°C; Operating temperature: 390V, 20A, 3.3 Ohm, 15V Power-off control: 200 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 60 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

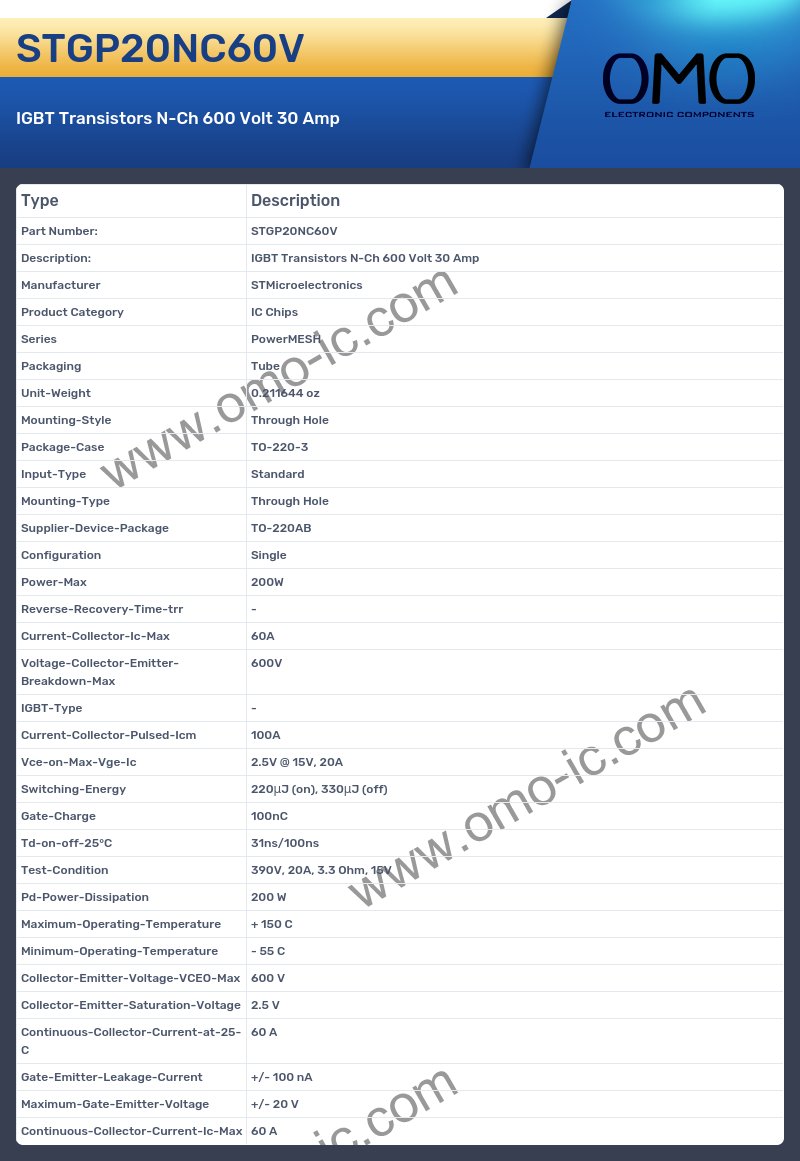

STGP20NC60V Specifications
A: At what frequency does the Series?
Q: The product Series is PowerMESH.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.211644 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-220AB.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 60A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 100A
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.5V @ 15V, 20A.
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 31ns/100ns.
A: Is the cutoff frequency of the product Test-Condition?
Q: Yes, the product's Test-Condition is indeed 390V, 20A, 3.3 Ohm, 15V
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 200 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 600 V.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.5 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 60 A
A: At what frequency does the Maximum-Gate-Emitter-Voltage?
Q: The product Maximum-Gate-Emitter-Voltage is +/- 20 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 60 A
